Below are optional Quorum accessories which have been designed and engineered to complement this specific fan.

Material 1: Iron
Material 2: Steel
Material 3: Zinc
~
Height (inch): 9.25
Diameter (inch): 52
Weight (lbs): 19
~
Motor Housing Diameter (inch): 10.32
Motor Housing Height (inch): 2.28
~
Number of Blades: 5
Blade Finish A: Satin Nickel

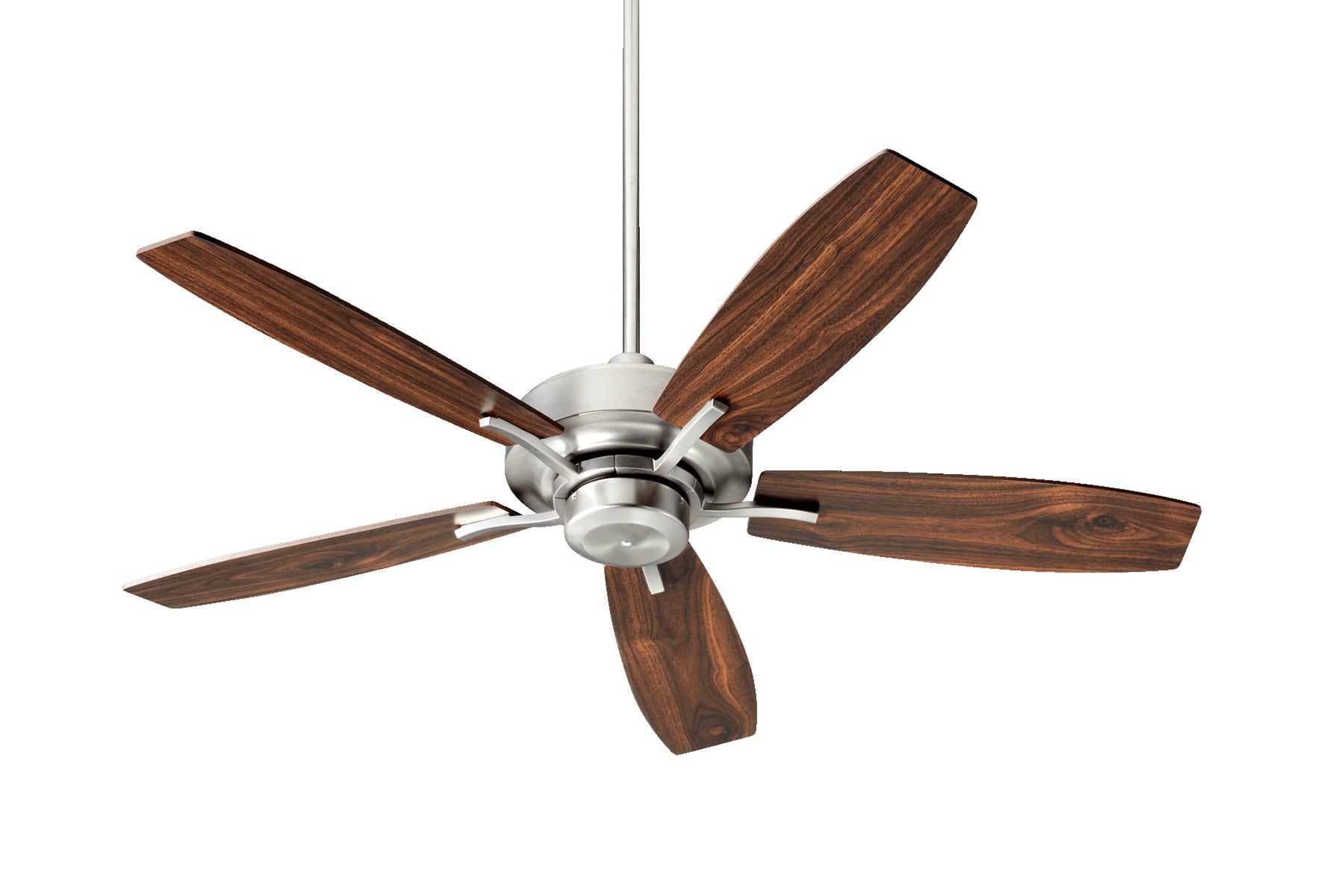

Blade Finish B: Walnut
Blade Material: Plywood
Blade Pitch: 13.5°
~
UL Type: Dry

Remote Adaptable: Yes
Smart by Bond Included: Yes
Switch Type: 3 speed pull chain
Reverse Switch Type: Manual Reverse Switch
~
EnergyGuide Airflow Efficiency: 81
EnergyGuide CFM: 3289
EnergyGuide Sweep (Inch): 52
EnergyGuide Watts: 41
~
Watts: 64/33/8
RPM: 160/110/62
CFM High Speed 1: 4446
CFM/Watts High Speed: 69
Watts High Speed 1: 64
Amps: .51/.36/.20
~
Motor Size: 172x14
Motor Poles: 16
Motor Height (mm): 14Motor Width (mm): 172
Motor Warranty: Limited Lifetime Motor Warranty
~

Light Kit Included: No
Light Kit Adaptable: Yes


Hugger Adaptable: Yes
~
Downrod Length 1 (inch): 4
Downrod Diameter 1 (inch): .5
Downrod Length 2 (inch): 6
Dowrod Diameter 2 (inch): .5
~
Ceiling to Blade 1 (inch): 11
Ceiling to Bottom 1 (inch): 13.25
Ceiling to Blade 2 (inch): 13
Ceiling to Bottom 2 (inch): 15.25
~
Sloped Ceiling Adaptable: No
~
Canopy Width (inch): 5.25
Canopy Height (inch): 2.25
Canopy Finish: Satin Nickel
~
Lead Wire Length (inch): 80

Note: Detachable Switch Cup | Skirted Blade Arms

Shipping Via: Parcel
Carton Height (inch): 13
Carton Length (inch): 31.25
Carton Width (inch): 21.25
