Below are optional Quorum accessories which have been designed and engineered to complement this specific fan.

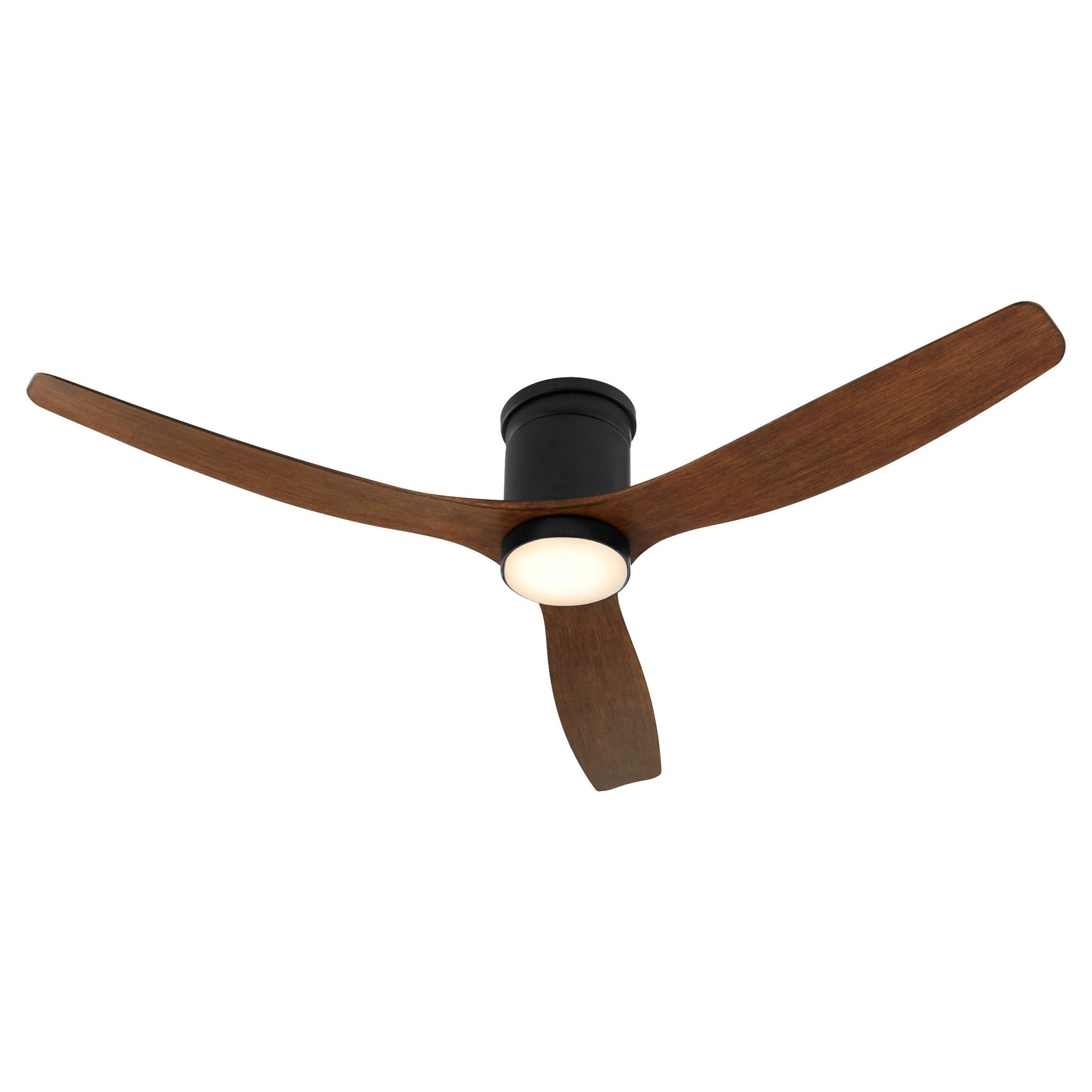

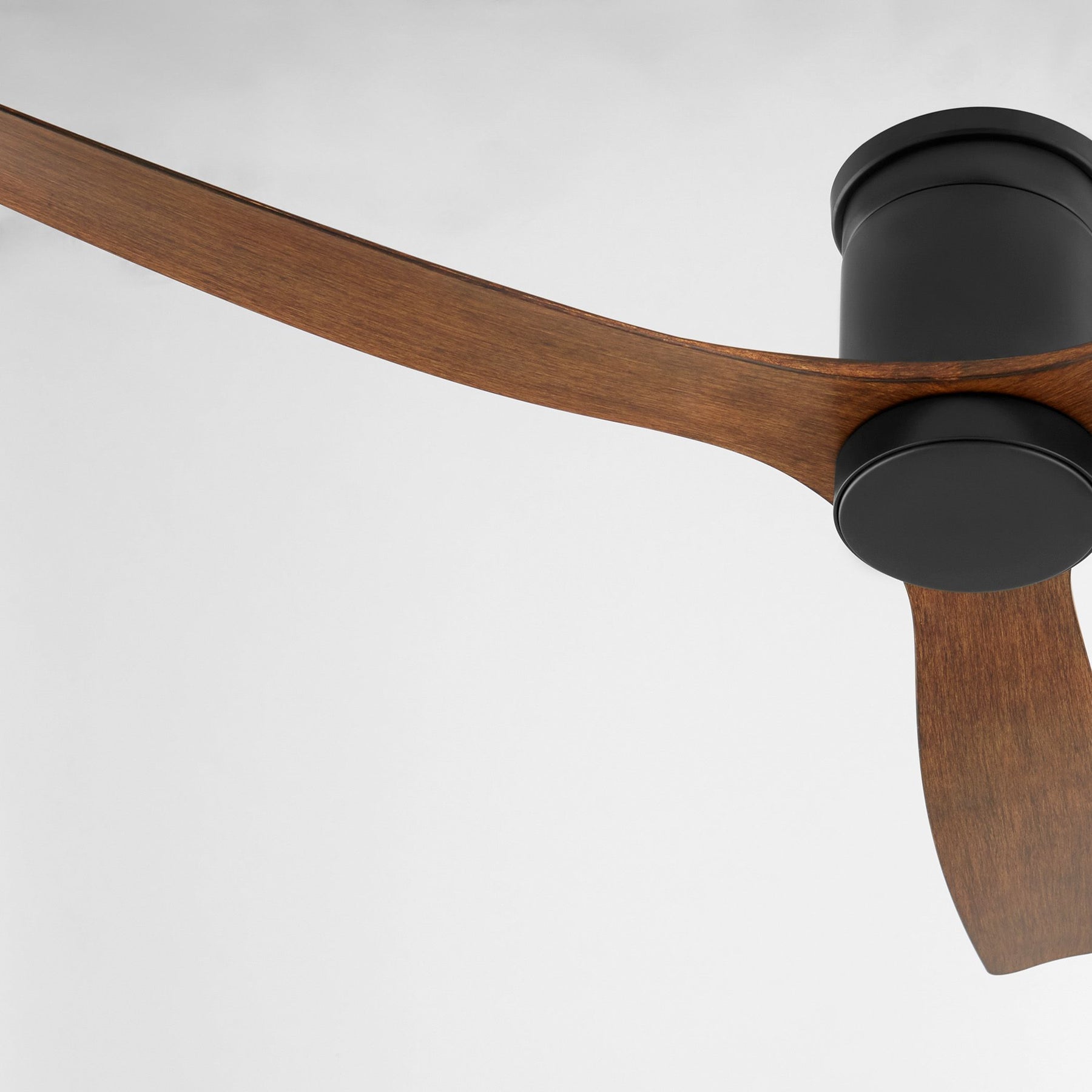

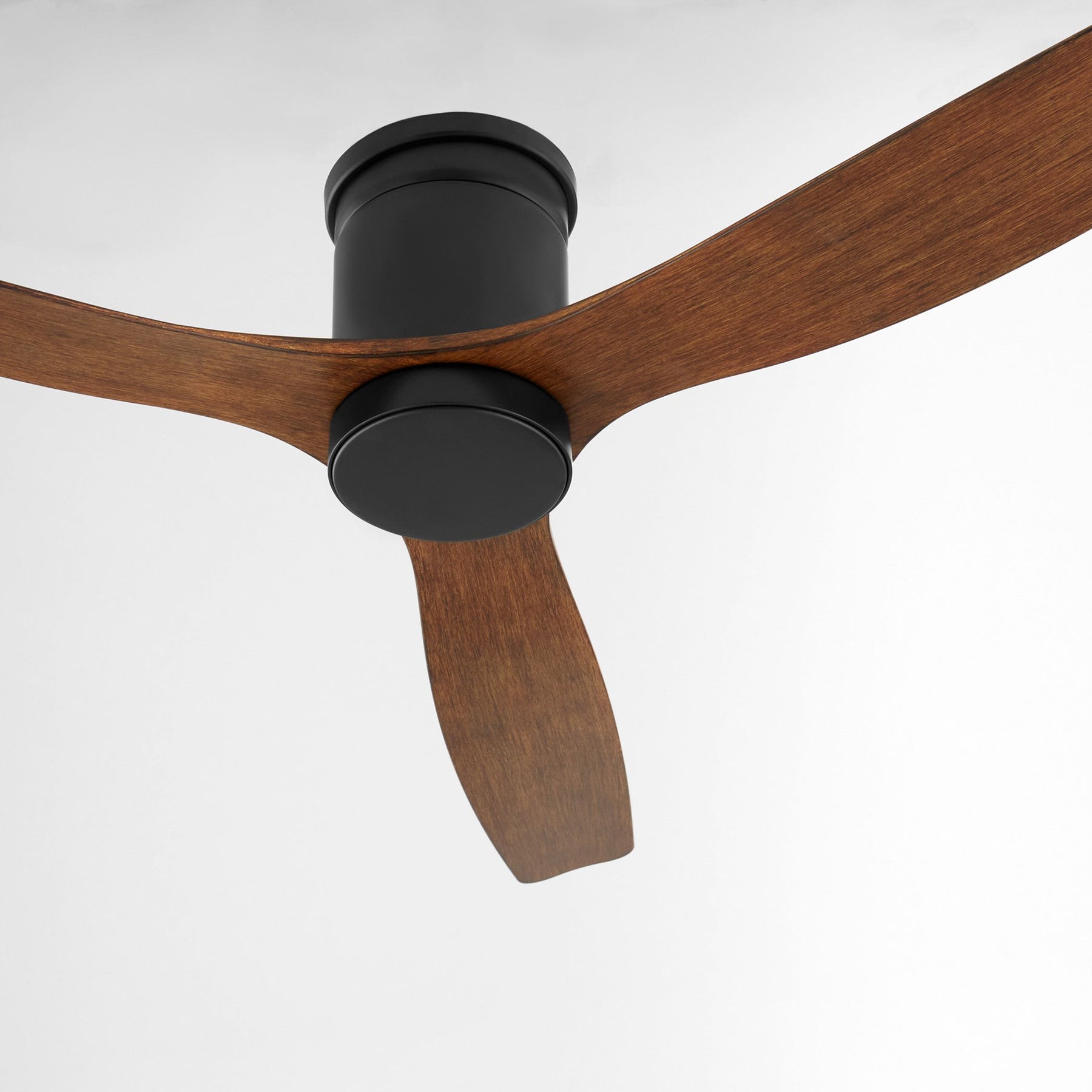

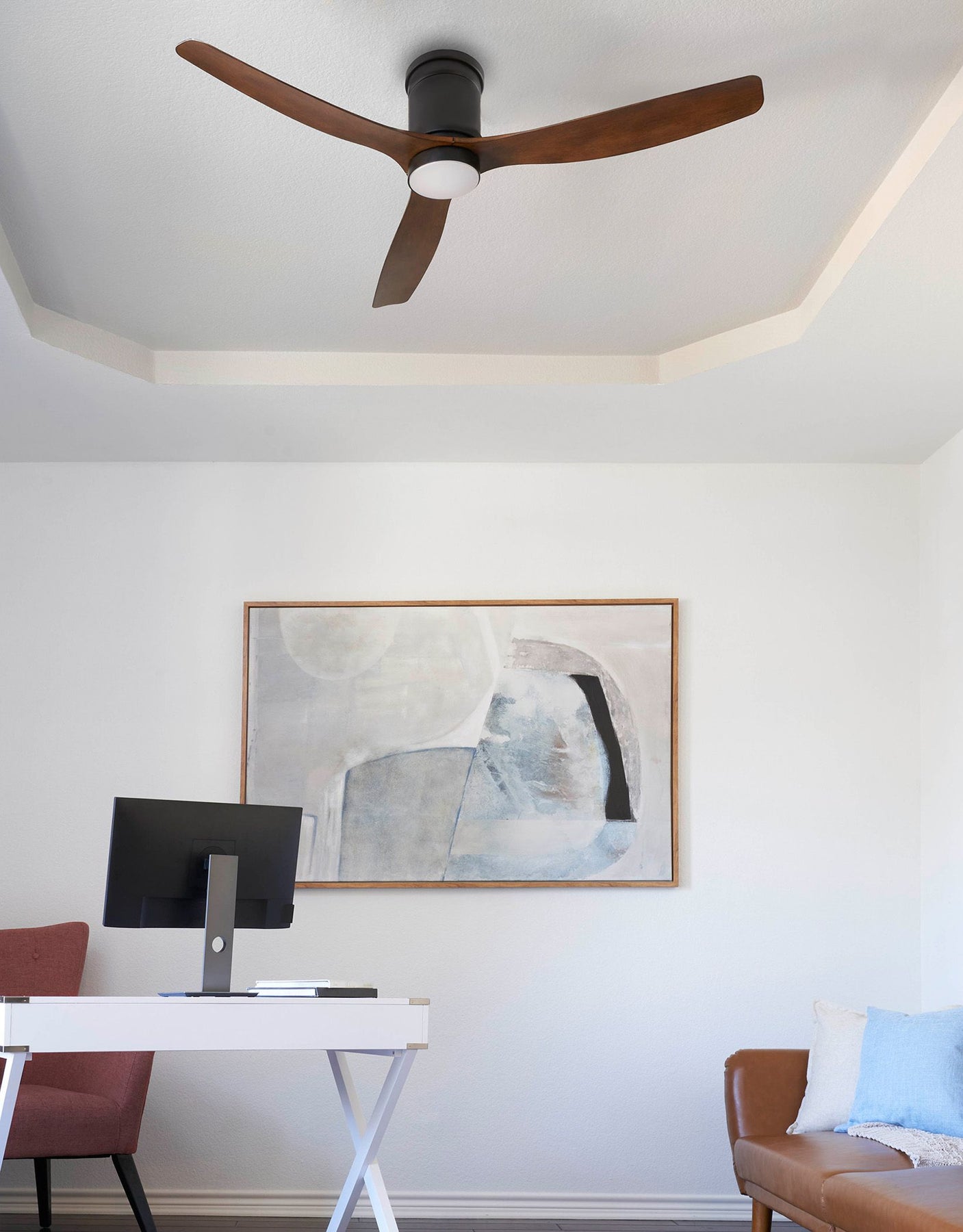

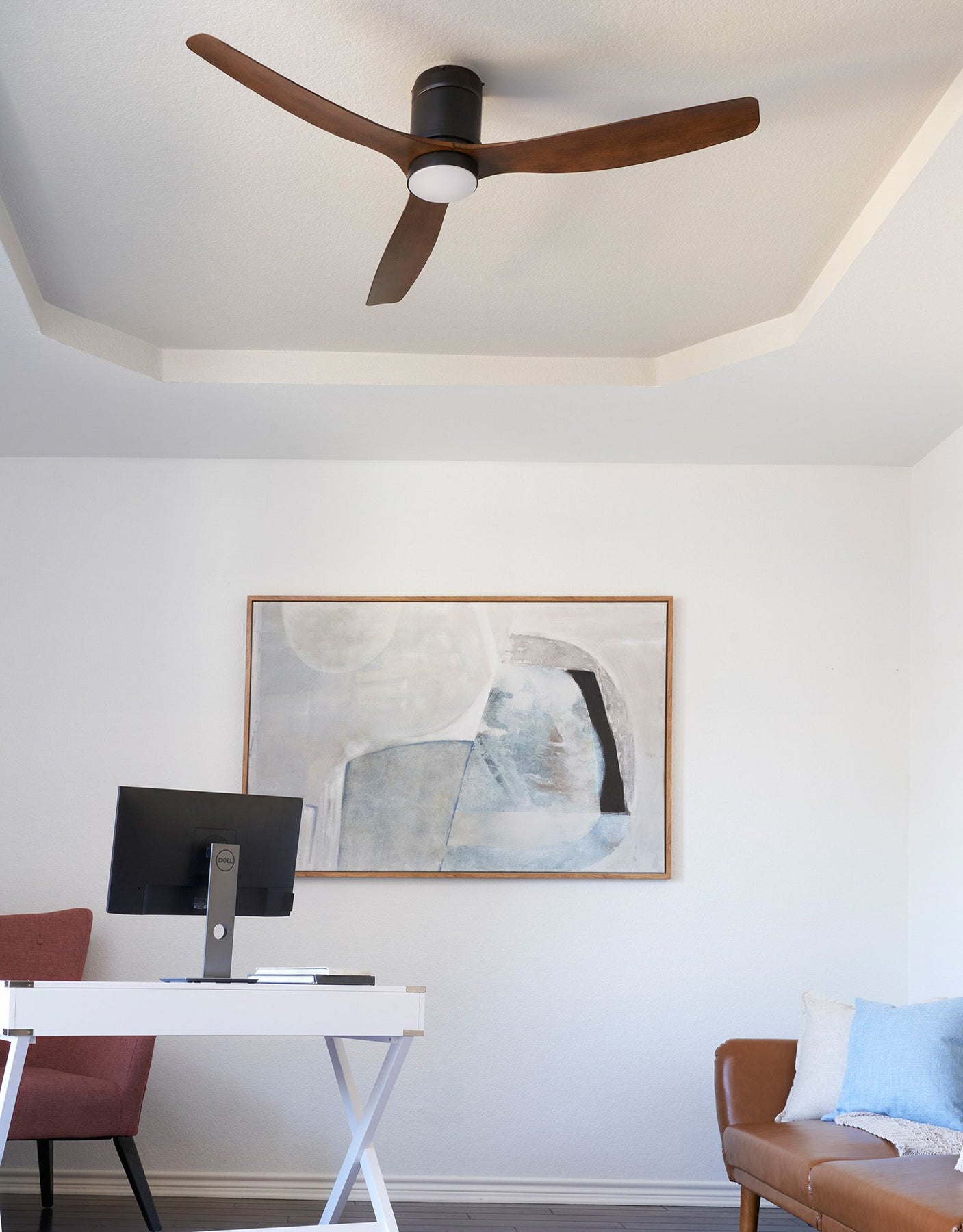

Smooth curves shape a seamless design in the Dayton series of damp-listed hugger fans. Enjoy a breezy 4,670 CFM from three 52" blades crafted from ABS thermoplastic. Enhance your experience with an LED light kit that aligns perfectly with the straight, cylinder motor housing. Options of natural-finished blades and studio white housing or walnut-finished blades and matte black housing provide juxtaposing light and dark choices that match most covered patio designs.
Material 1: Aluminum
Material 2: Zinc
Material 3: Iron
~
Finish: Matte Black
~
Width (inch): 52
Height (inch): 10.75
Diameter (inch): 52
Weight (lbs): 19
~
Motor Housing Mesh Color: Textured Black
~
Number of Blades: 3
Blade Finish A: Walnut
Blade Material: ABS
Blade Pitch: 13.5°
~
UL Type: Damp
Remote Adaptable: Yes
Smart By Bond Included: Yes
Switch Type: 6 speed wall control
Reverse Switch Type: Wall Control
~
EnergyGuide Airflow Efficiency: 163
EnergyGuide CFM: 2670
EnergyGuide Sweep (Inch): 52
EnergyGuide Watts: 16
~
Watts: 19/13/9/6/4/2
RPM: 200/173/151/123/100/77
CFM High Speed 1: 4670
CFM/Watts High Speed: 187
Watts High Speed 1: 25
Amps: .28/.20/.15/.10/.07/.05
~
Motor Size: 120DCx12
Motor Poles: 8
Motor Warranty: Limited Lifetime Motor Warranty
~
Light Kit Included: No
Light Kit Adaptable: No
Integrated LED: Yes
Socket Base: LED Array
Color Temperature: 3000K
CCT 1: 2700K
CCT 2: 3000K
CCT 3: 3500K
CCT 4: 4000K
CCT 5: 5000K
Initial Lumens: 1559
CRI: 90
~
Ceiling to Blade (inch): 6.5
Ceiling to Bottom (inch): 9.125
~
Sloped Ceiling Adaptable: No
Sloped Ceiling Compatibility: 15
Extended Sloped Ceiling Compatibility: 23°
~
Canopy Finish: Matte Black
~
Lead Wire Length (inch): 16
Shipping Via: Parcel
Carton Height (inch): 10.75
Carton Length (inch): 24.5
Carton Width (inch): 13
