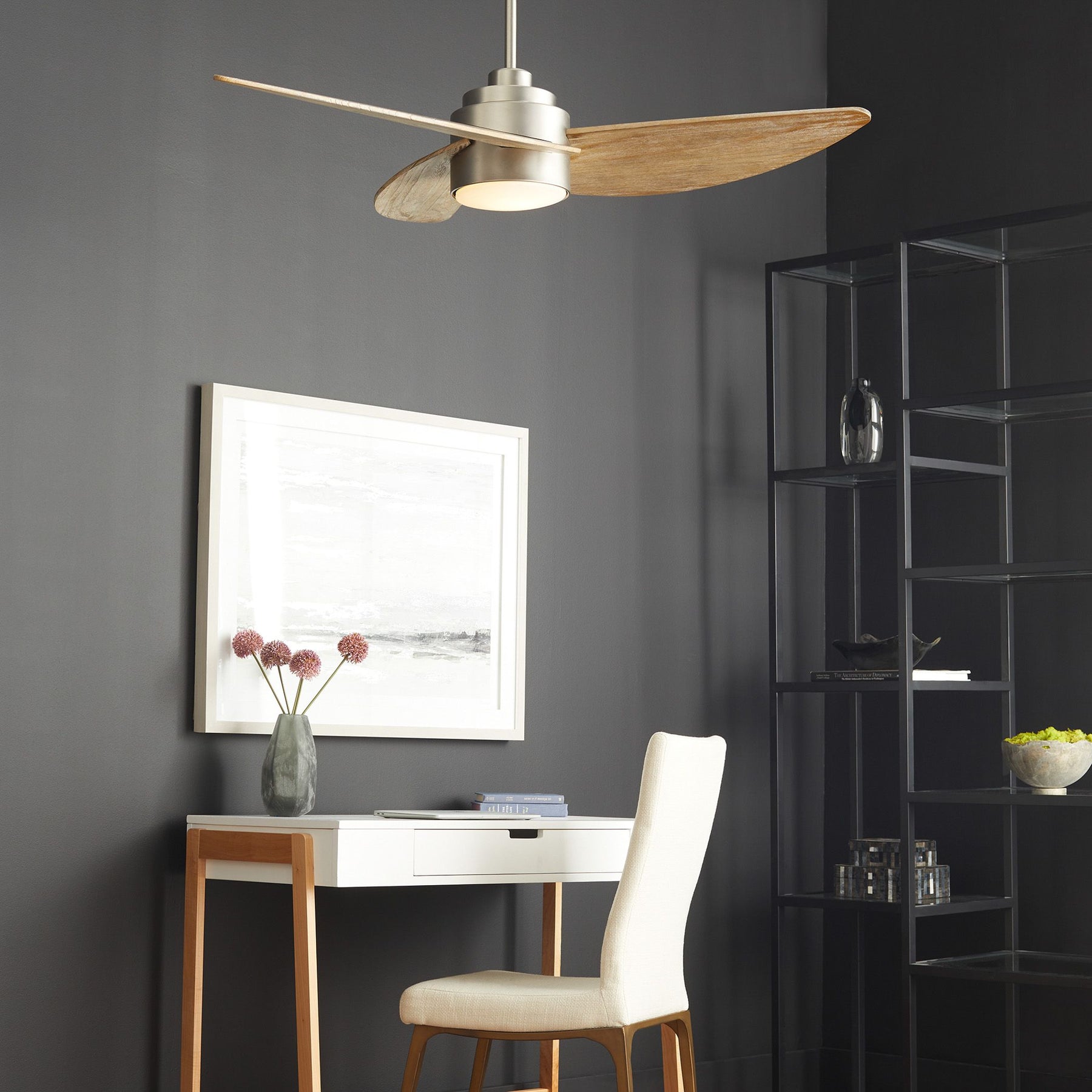

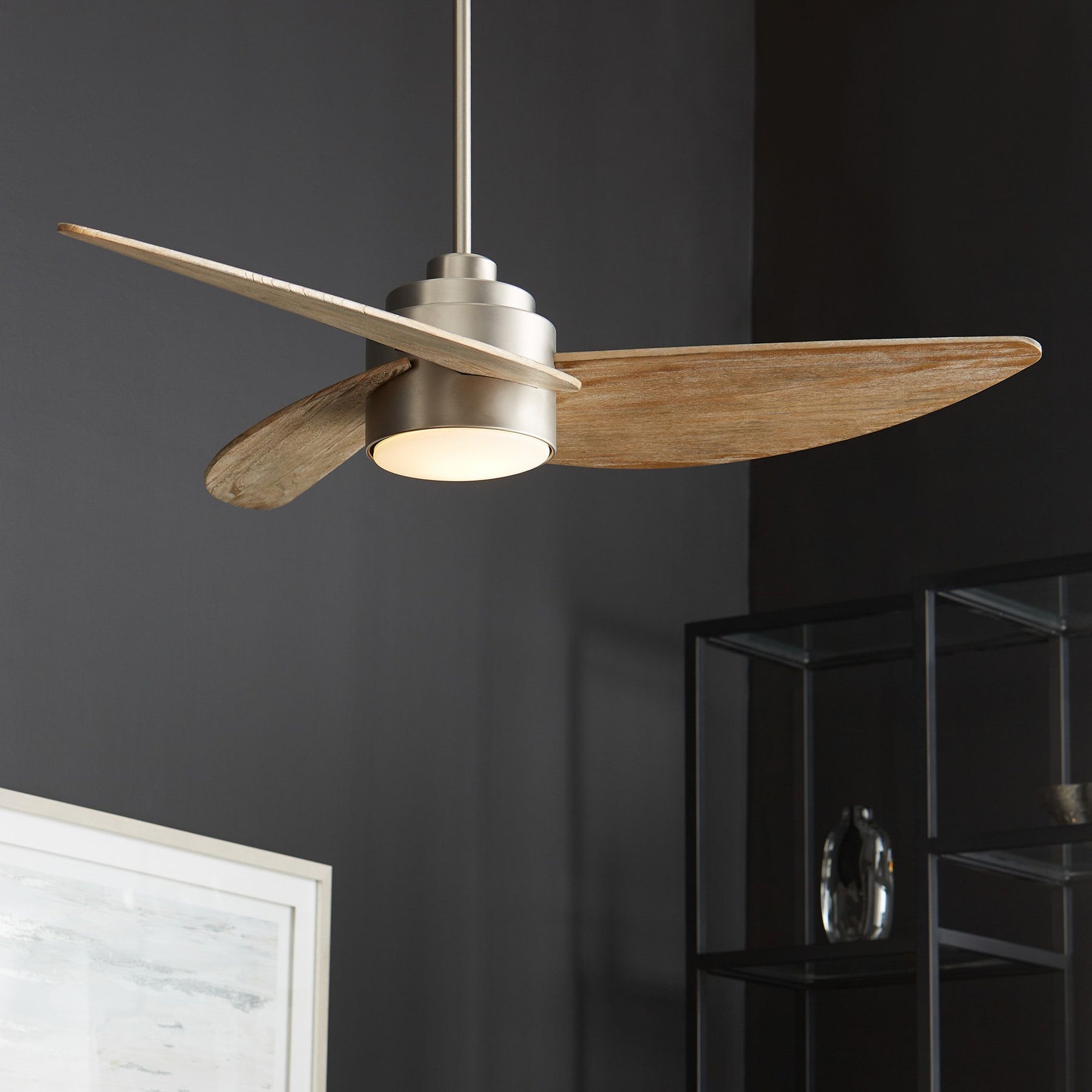

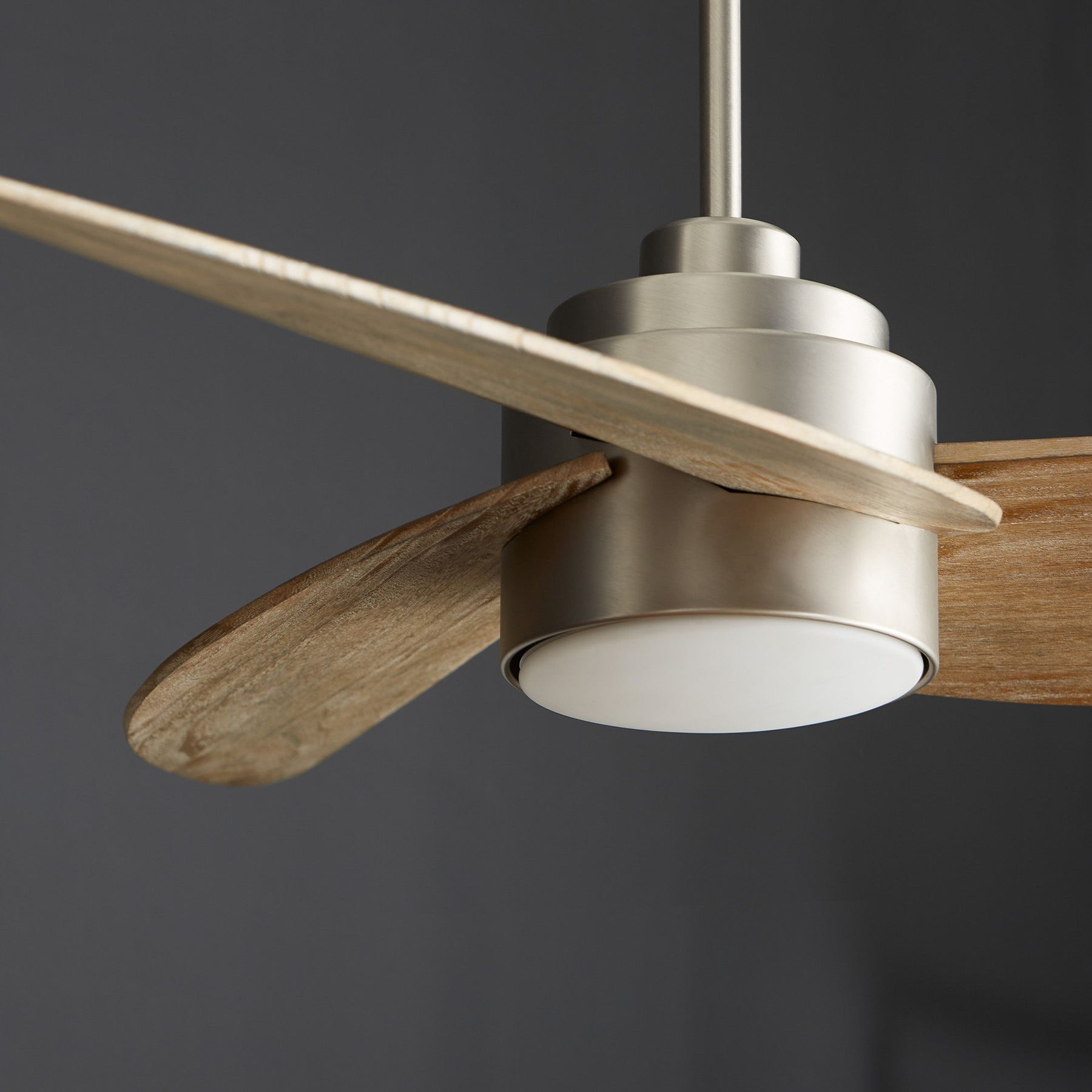

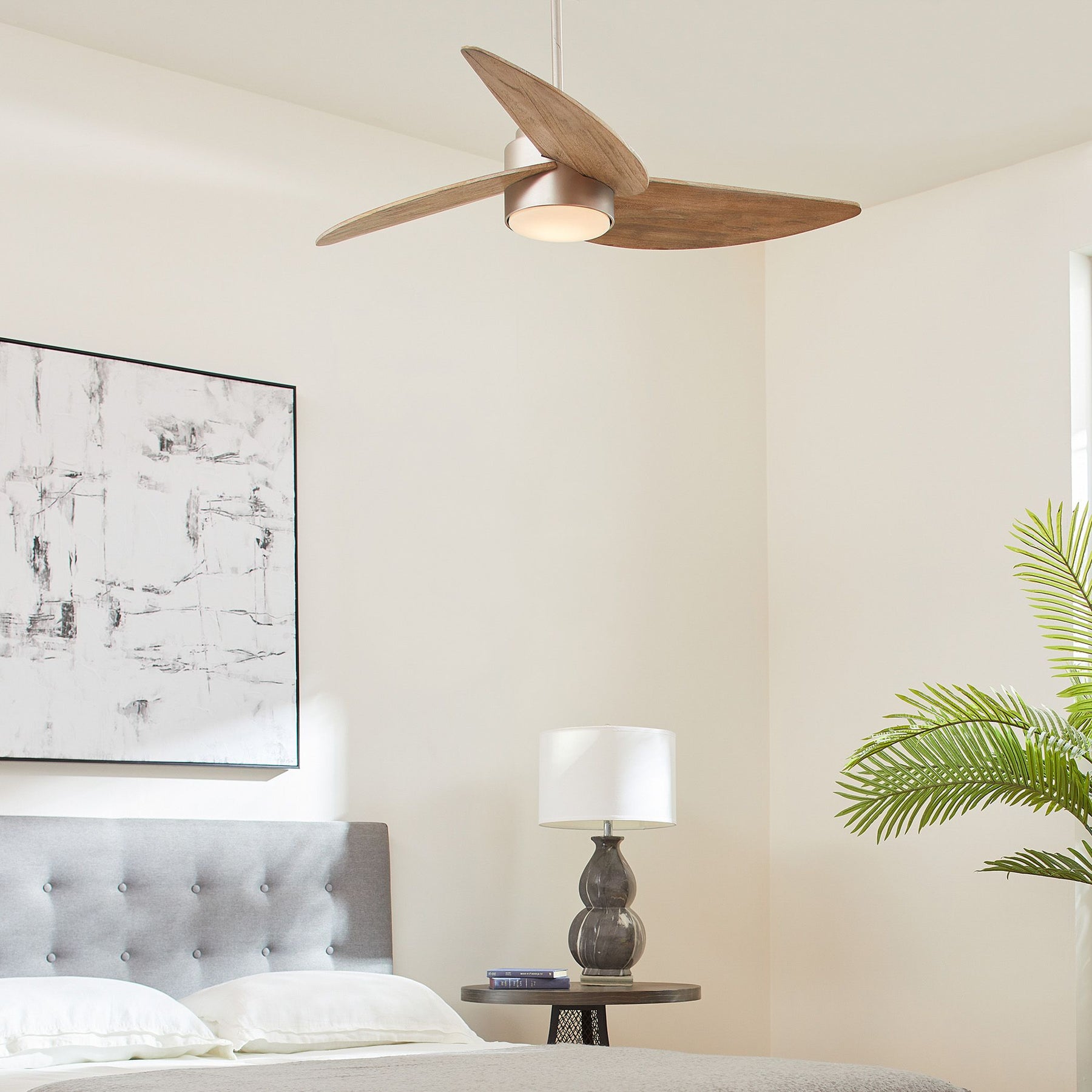

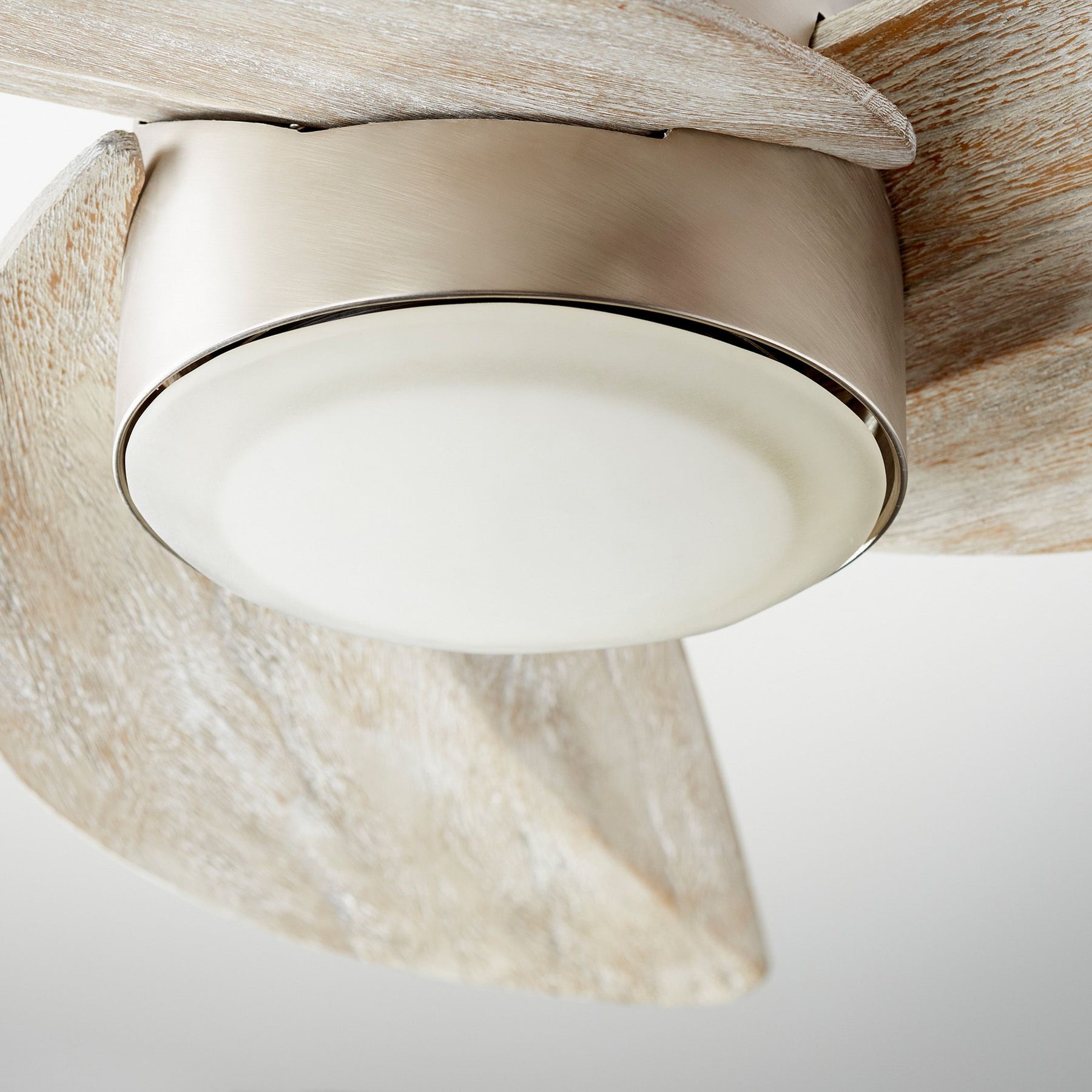

The Trinity fan combines the best of both worlds with its modern form and classic distressed finish. The blade sweep extends 52 inches at an 18-degree pitch. Each blade boasts a Weathered Oak finish for that quintessential rustic look. The motor frame sports a nice contrasting Satin Nickel finish. This contemporary three-blade design features graceful curves that provide a breezy airflow perfect for any boho-chic, eclectic, or modern farmhouse space. An LED light kit is included on this fan for added versatility and functionality.
Material 1: Steel
Material 2: Aluminum
Material 3: Wood
~
Finish: Satin Nickel
~
Width (inch): 52
Height (inch): 10
Diameter (inch): 52
Weight (lbs): 15
~
Motor Housing Diameter (inch): 8.47
Motor Housing Height (inch): 5.63
Motor Housing Mesh Color: White
~
Number of Blades: 3
Blade Finish A: Weathered Oak
Blade Material: Wood
Blade Pitch: 18°
~
UL Type: Dry
Remote Adaptable: Yes
Smart By Bond Included: No
Switch Type: 6 speed wall control
Reverse Switch Type: Wall control
~
EnergyGuide Airflow Efficiency: 165
EnergyGuide CFM: 3033
EnergyGuide Sweep (Inch): 52
EnergyGuide Watts: 18
~
Watts: 30.2/18.4/10.8/6.2/3.5/2.1
RPM: 167/143/120/96/73/49
CFM High Speed 1: 4617
CFM/Watts High Speed: 156
Watts High Speed 1: 29
Amps: .39/.26/.17/.11/.09/.08
~
Motor Size: DC-125
Motor Warranty: Limited Lifetime Motor Warranty
~
Light Kit Included: Yes
Light Kit Adaptable: Yes
Integrated LED: Yes
Socket Base: LED Array
Color Temperature: 3000K
Initial Lumens: 1313
CRI: 90
Hugger Adaptable: Yes
~
Downrod Length (inch): 6
Downrod Diameter (inch): .5
~
Ceiling to Blade (inch): 11.75
Ceiling to Bottom (inch): 15.75
~
Sloped Ceiling Adaptable: Yes
Extended Sloped Ceiling Compatibility: 45
~
Canopy Width (inch): 6
Canopy Height (inch): 2.25
Canopy Finish: Satin Nickel
~
Lead Wire Length (inch): 80
Shipping Via: Parcel
Carton Height (inch): 9.75
Carton Length (inch): 17.75
Carton Width (inch): 11.75
