Below are optional Quorum accessories which have been designed and engineered to complement this specific fan.

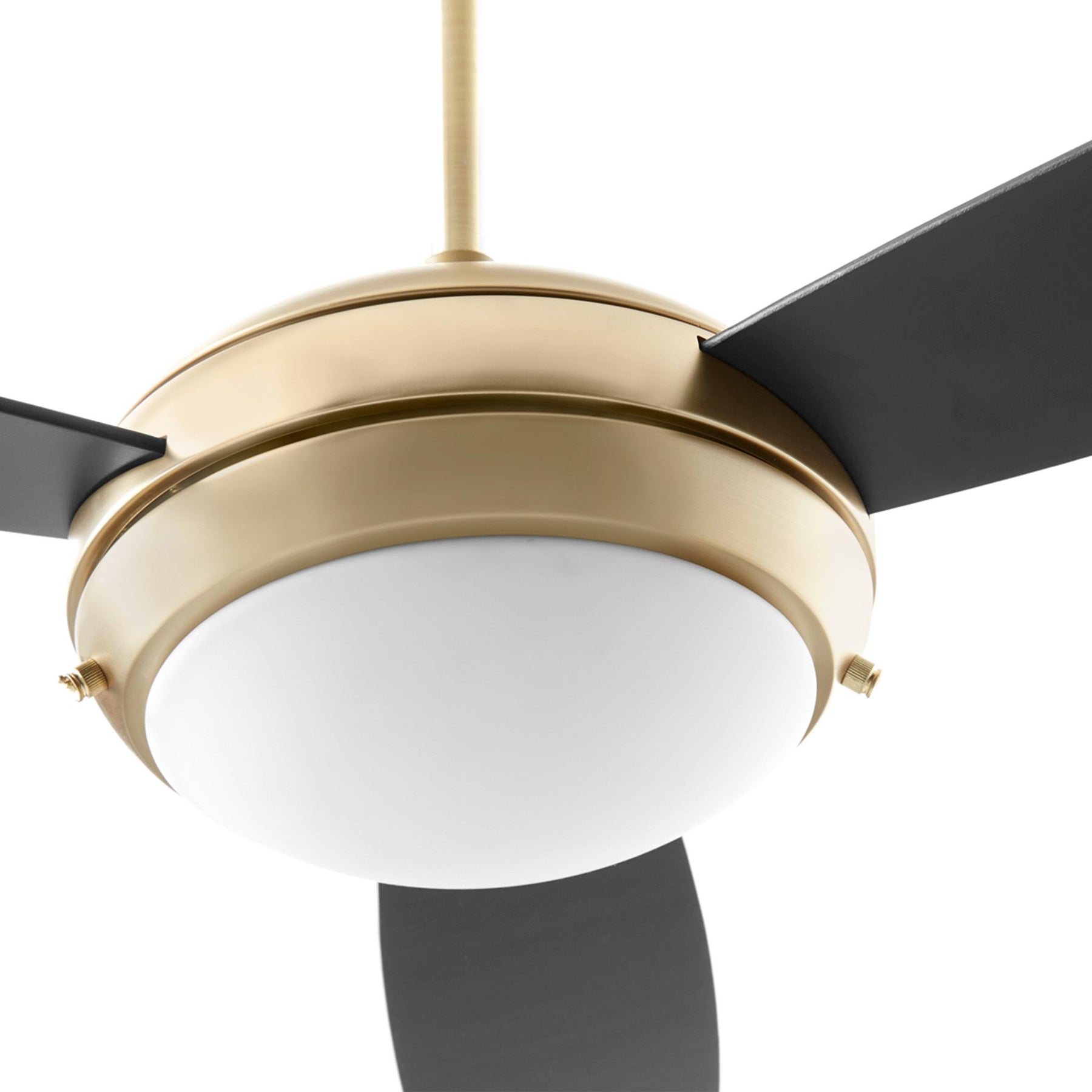

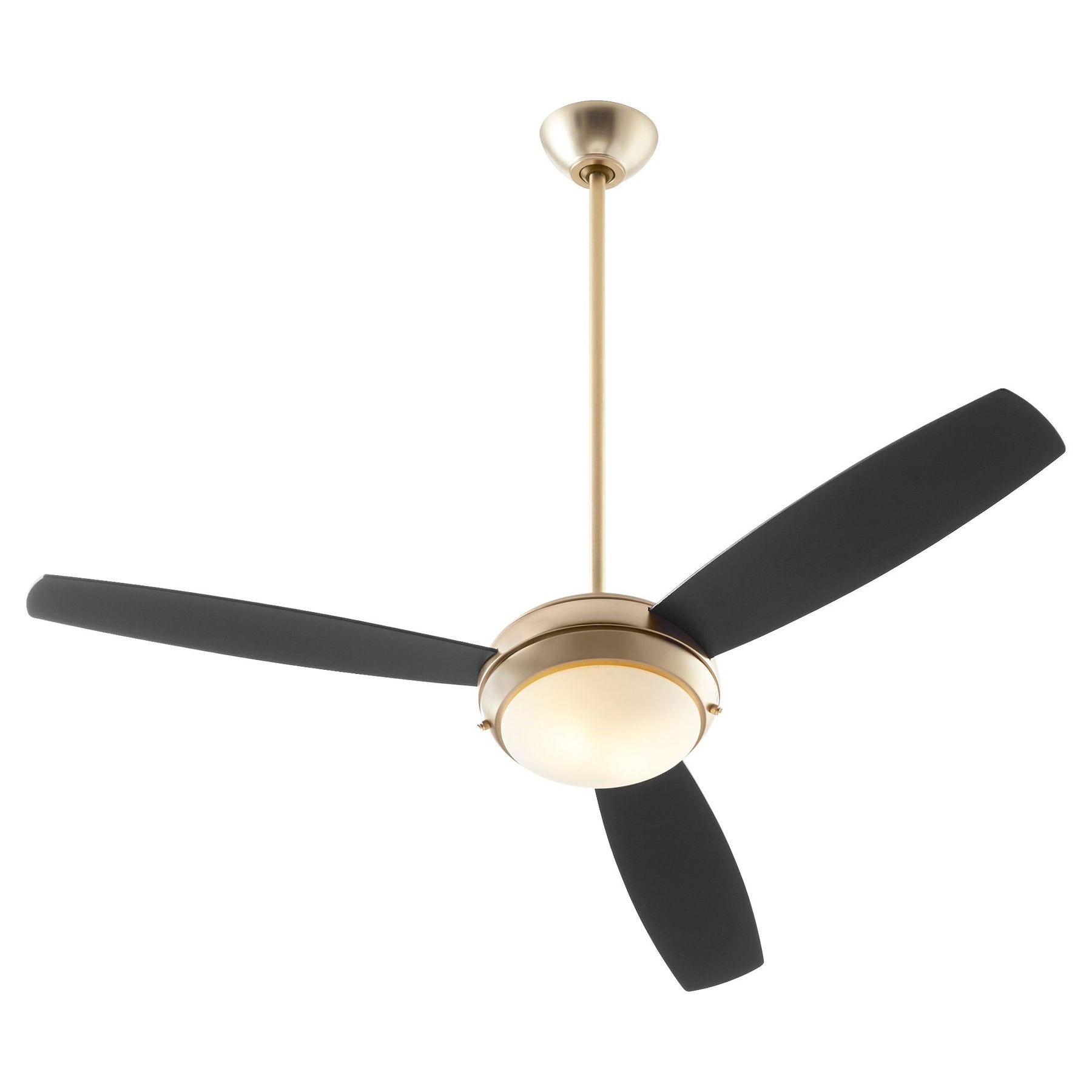

The Expo ceiling fan is a smart synthesis of a minimalist aesthetic and monochromatic design. Its housing and motor is intentionally designed to be inconspicuous, while its trio blade system is futuristically underscored by a convex LED lighting fixture.
Material 1: Steel
Material 2: Aluminum
Material 3: Copper
~
Finish: Aged Brass
~
Width (inch): 52
Height (inch): 10.25
Diameter (inch): 52
Weight (lbs): 18
~
Motor Housing Diameter (inch): 11.02
Motor Housing Height (inch): 1.65
Motor Housing Mesh Color: Aged Brass
~
Number of Blades: 3
Blade Finish A: Matte Black
Blade Finish B: Walnut Oak
Blade Material: Plywood
Blade Pitch: 12.5°
~
UL Type: Dry
Remote Adaptable: Yes
Smart By Bond Included: Yes
Switch Type: 3 speed pull chain
Reverse Switch Type: Manual Reverse Switch
~
EnergyGuide Airflow Efficiency: 95
EnergyGuide CFM: 3346
EnergyGuide Sweep (Inch): 52
EnergyGuide Watts: 35
~
Watts: 58/29/11
RPM: 185/130/75
CFM High Speed 1: 4635
CFM/Watts High Speed: 82
Watts High Speed 1: 56
Amps: .48/.35/.21
~
Motor Size: AC-153x15
Motor Poles: 14
Motor Height (mm): 15Motor Width (mm): 153
Motor Warranty: Limited Lifetime Motor Warranty
~
Light Kit Included: Yes
Light Kit Adaptable: Yes
Number of Lights: 2
Socket Base: Medium
Color Temperature: 3000K
Initial Lumens: 1600
CRI: 80
Hugger Adaptable: Yes
~
Downrod Length (inch): 4
Downrod Diameter (inch): .5
~
Ceiling to Blade (inch): 9
Ceiling to Bottom (inch): 13.25
~
Sloped Ceiling Adaptable: Yes
Sloped Ceiling Compatibility: 15
Extended Sloped Ceiling Compatibility: 45
~
Canopy Height (inch): 2.25
Canopy Finish: Aged Brass
~
Lead Wire Length (inch): 80
Safety Ratings: cUL
Note: Triple Capacitor
Shipping Via: Parcel
Carton Height (inch): 9
Carton Length (inch): 25
Carton Width (inch): 13.75
