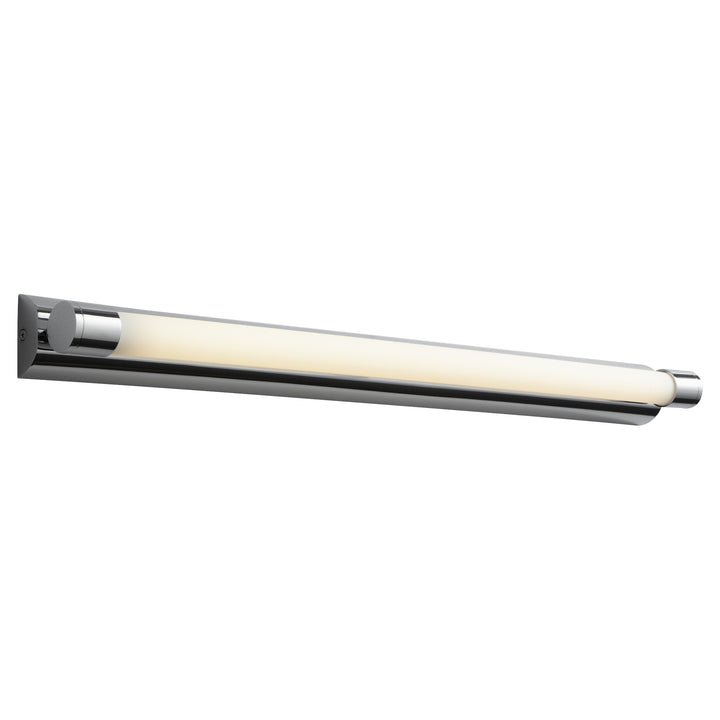

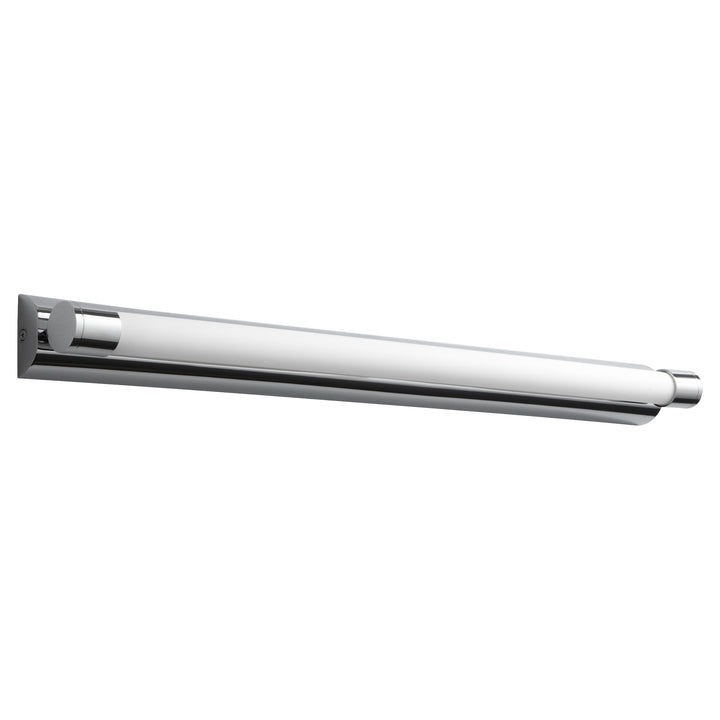

Sleek and minimalist, the Skyline vanity fixture features a polished chrome or satin nickel finish and matte white acrylic diffuser for soft, even illumination. Ideal for bath and vanity applications, this ADA-compliant, damp-rated light supports vertical or horizontal mounting. Uses one 21W (36" model) or 14W (14" model) T5 Mini Bi-Pin lamp (not included) for a streamlined lighting solution.
Material 1: Steel
Material 2: Acrylic
Finish 1: Polished Chrome
Width (inch): 36.0
Height (inch): 3.25
Weight (lbs): 8.0
Diffuser Material: Matte White Acrylic
UL Type: Damp
Number of Lights: 1
Socket Base: Mini Bi-Pin
Watts: 21
Driver Model: ESD-A21T5
Driver Voltage: 120-277v
Dimming: TRIAC | ELV | 0-10V
Back Plate Width (inch): 35.83
Back Plate Height (inch): 3.07
Back Plate Depth (inch): 1.38
Mounting Plate Width (inch): 35.51
Mounting Plate Height (inch): 2.64
J Box: Unit mounts to 2"x3" junction box, with additional holes for mounting direct to structure | Allow 6" to either end of fixture to facilitate mounting of back plate

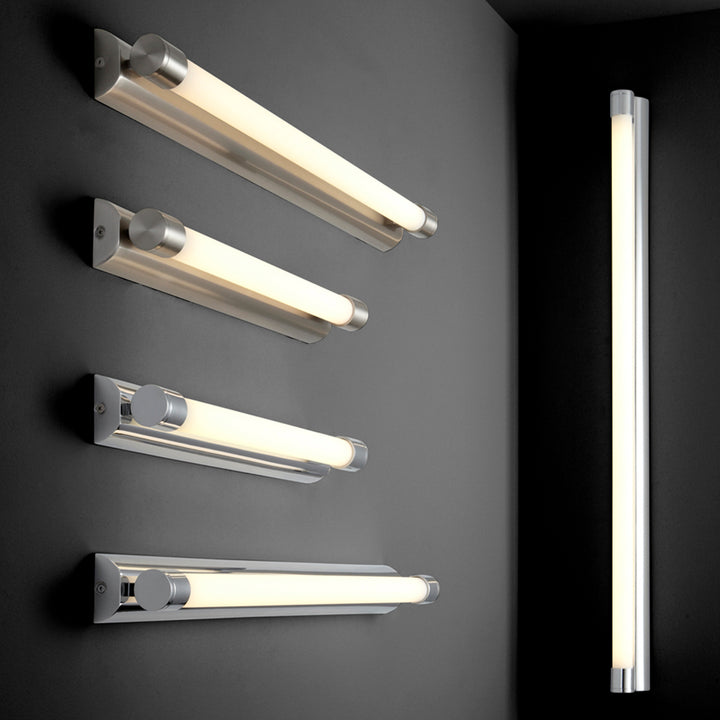

Versatile Mounting: Approved for vertical or horizontal mounting
Mounting to Top of Back Plate(inch): 1.54
Mounting to Bottom of Fixture (inch): 17.91
Mounting to Top of Back Plate(inch): 1.54
Mounting to Bottom of Back Plate(inch): 1.54
Shipping Via: Parcel
Carton Height (inch): 7.75
Carton Length (inch): 7.0
Carton Width (inch): 39.0
