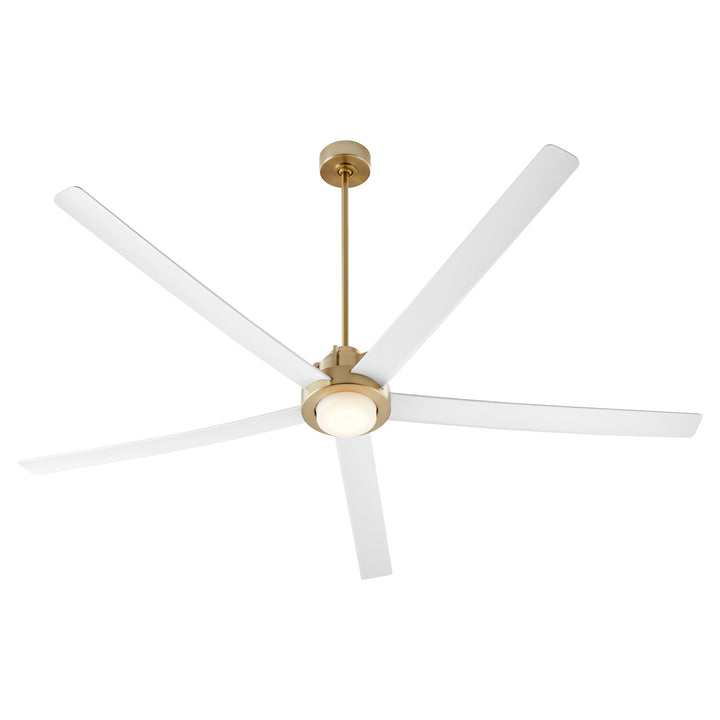

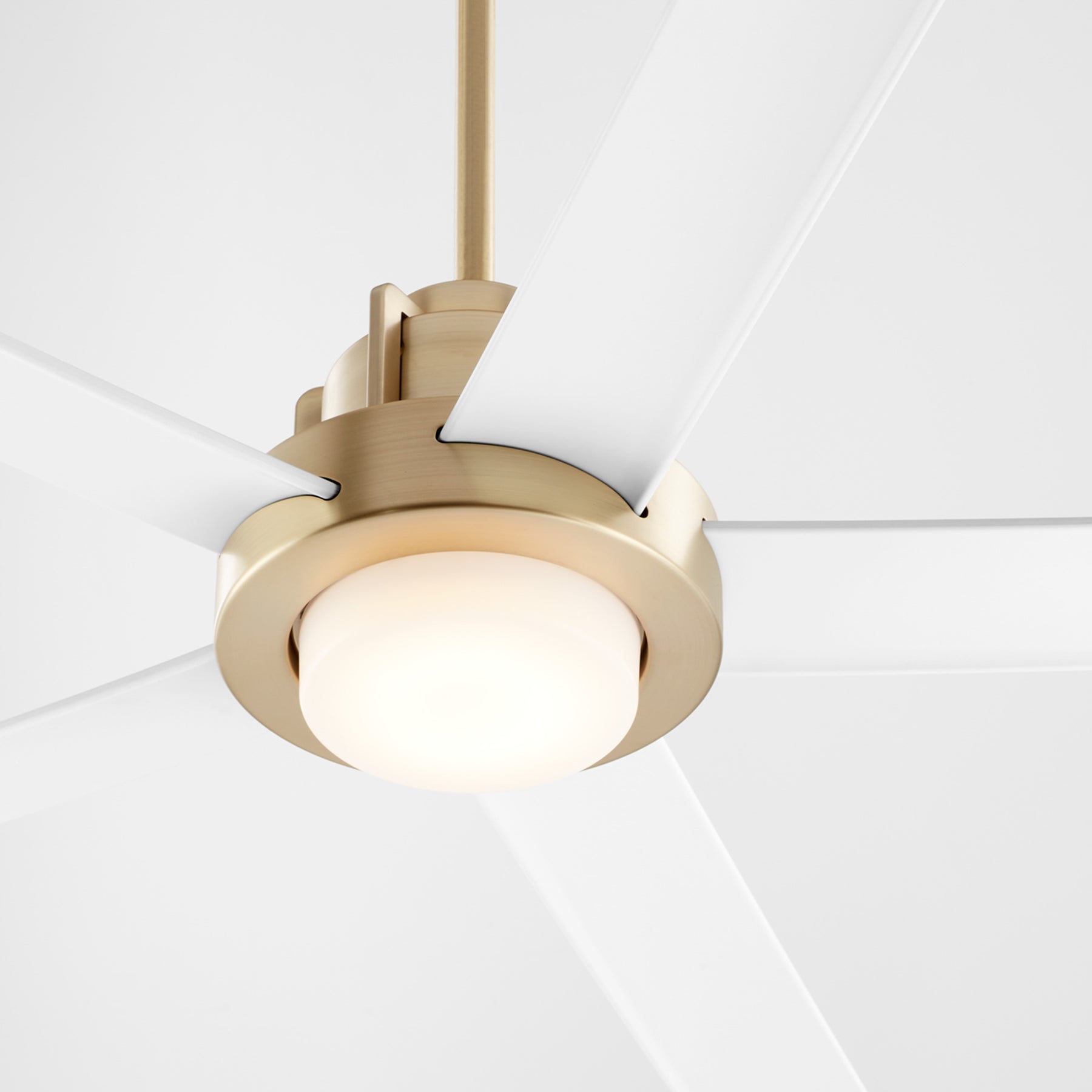

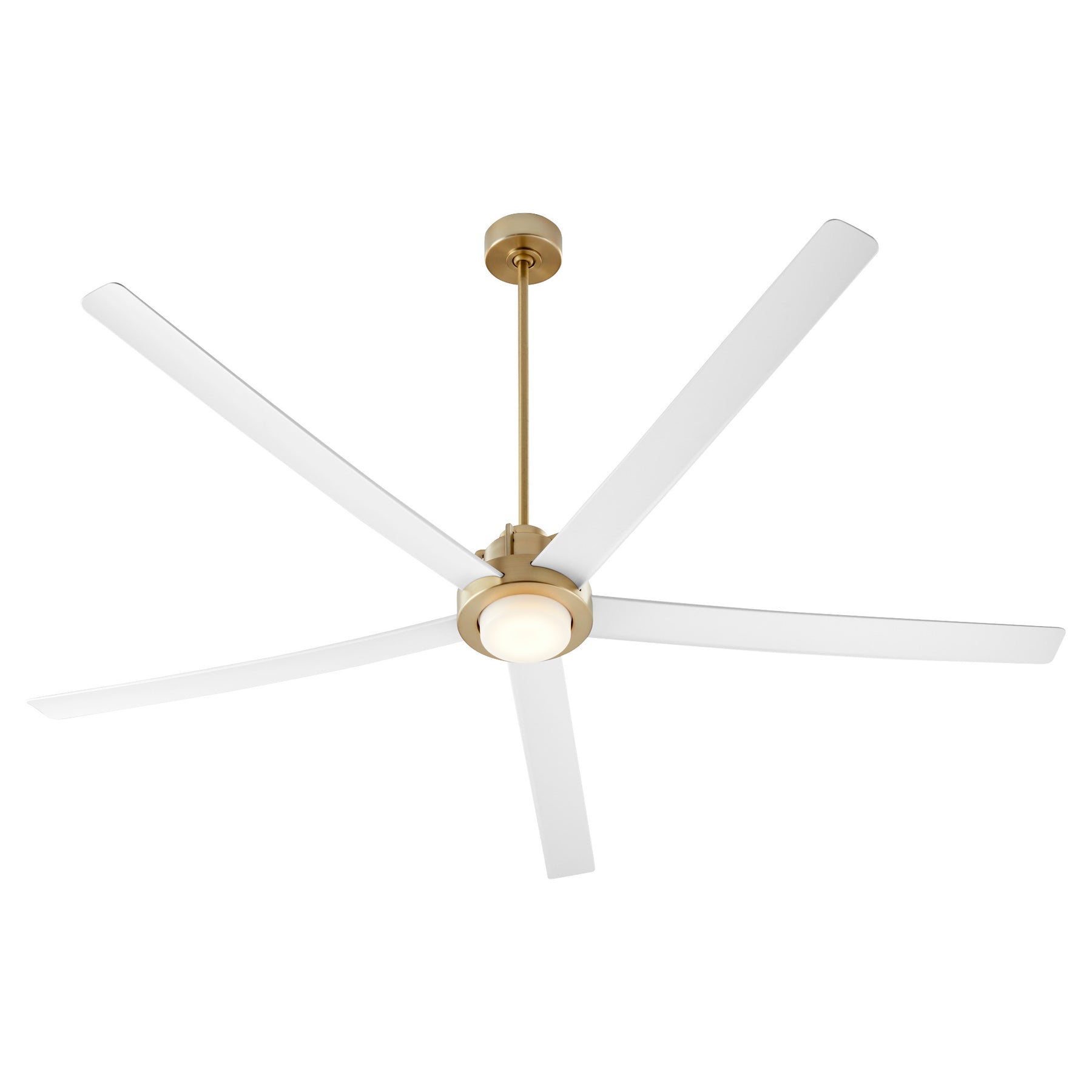

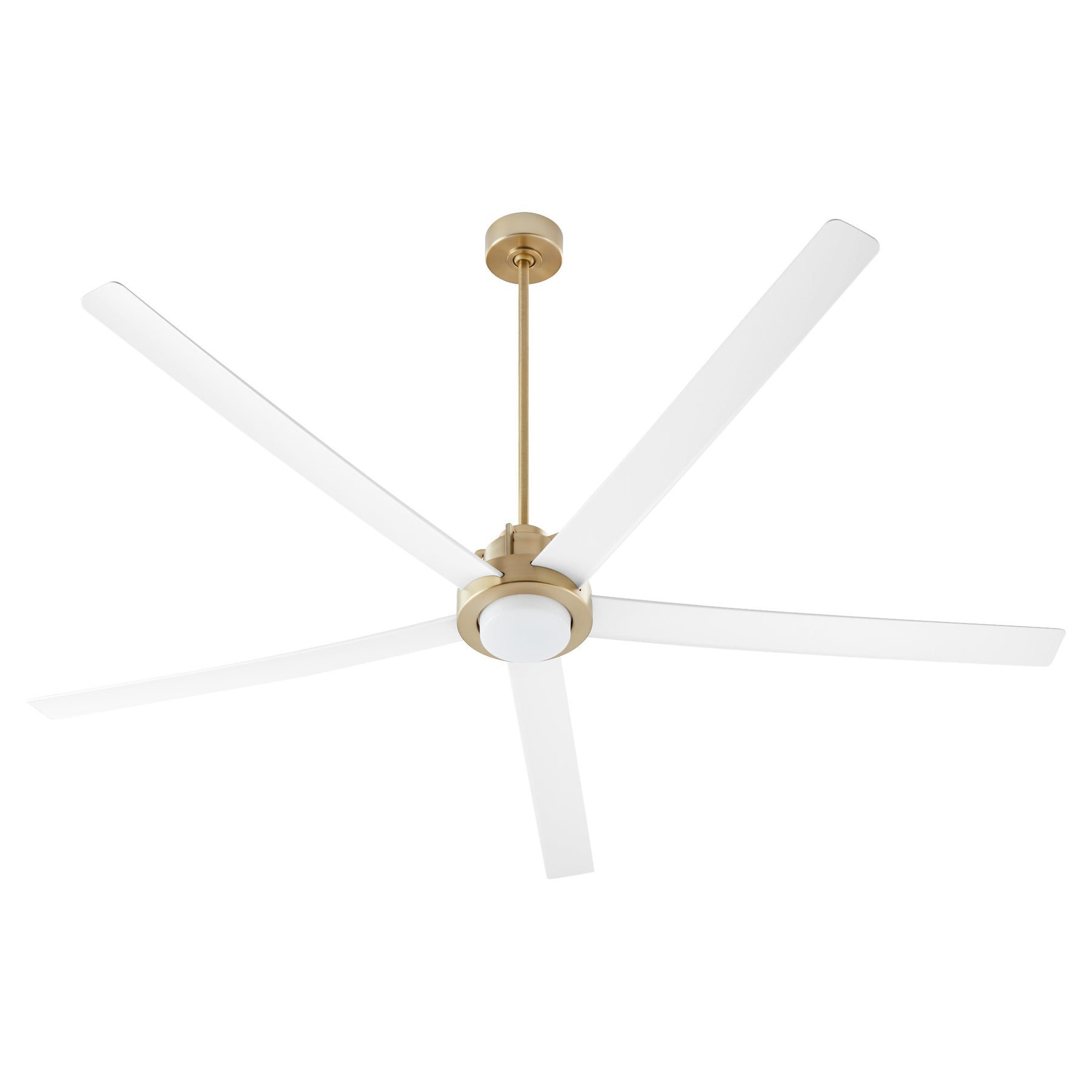

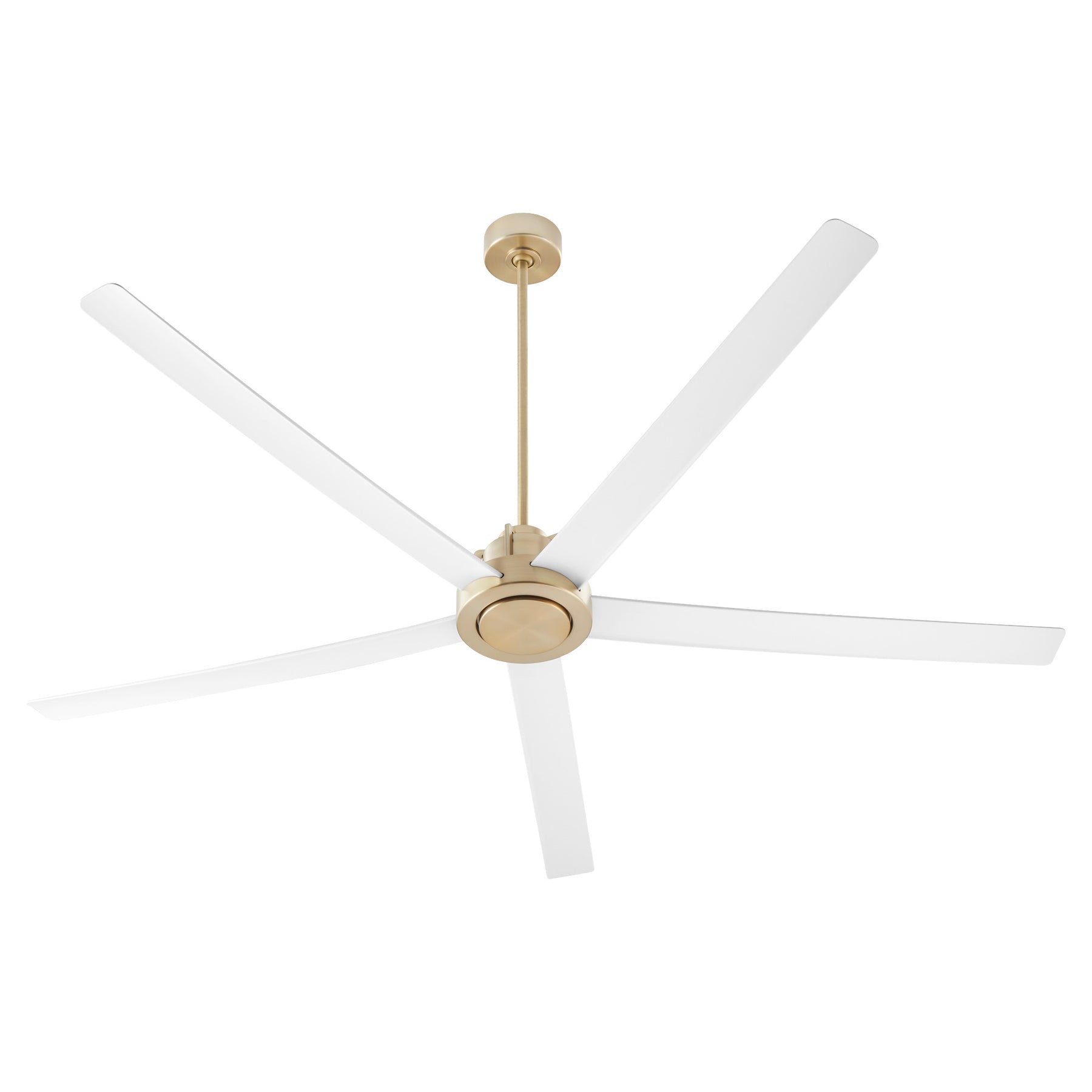

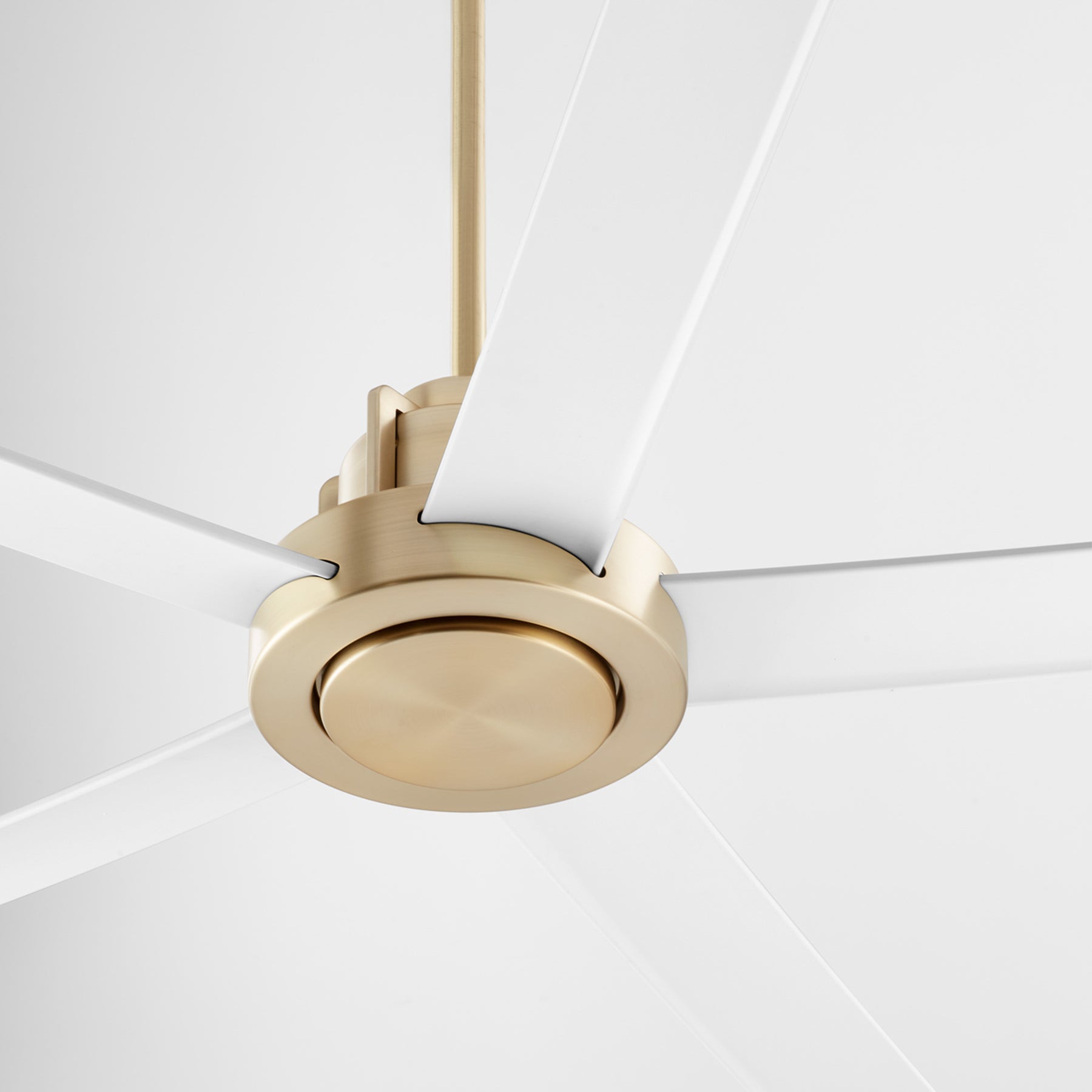

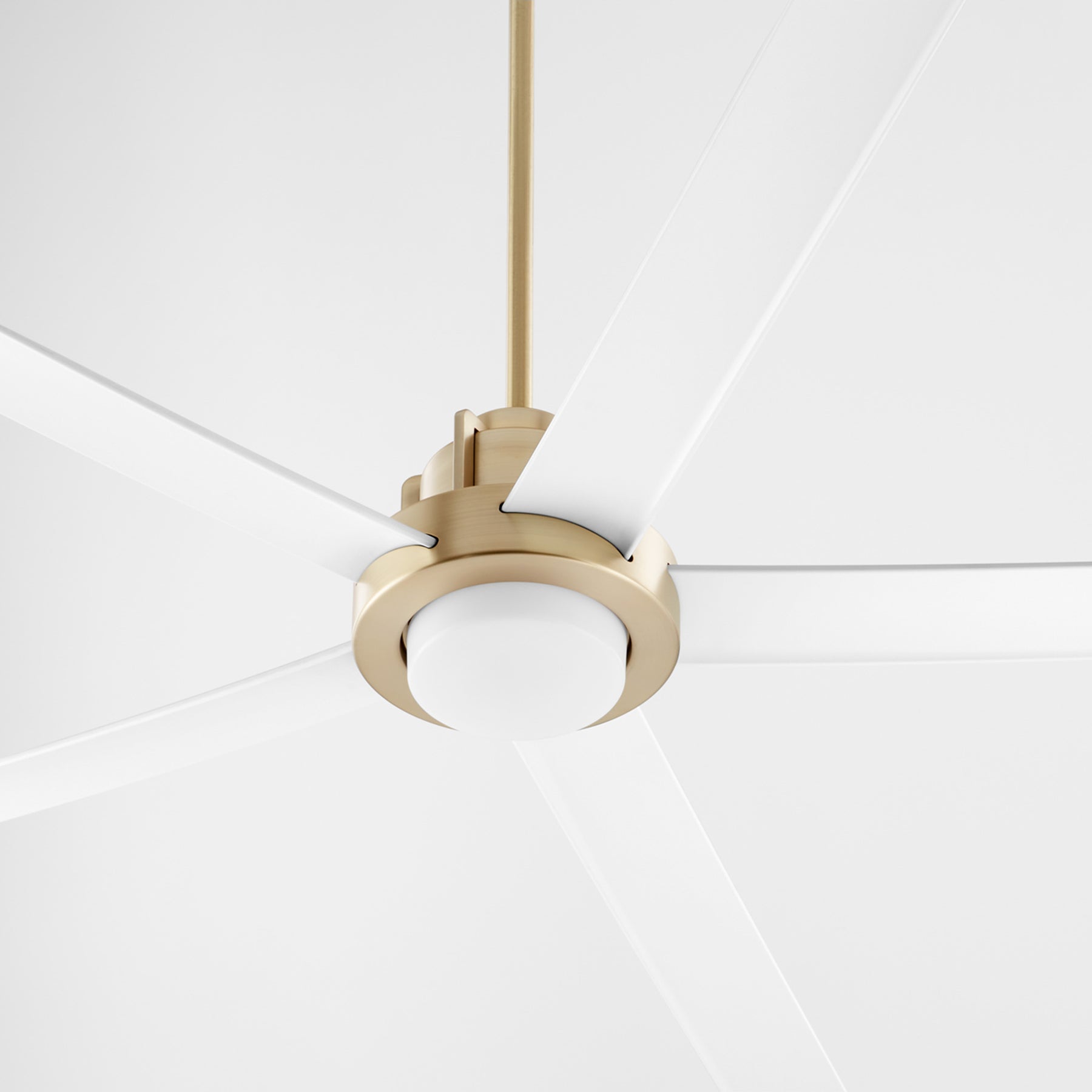

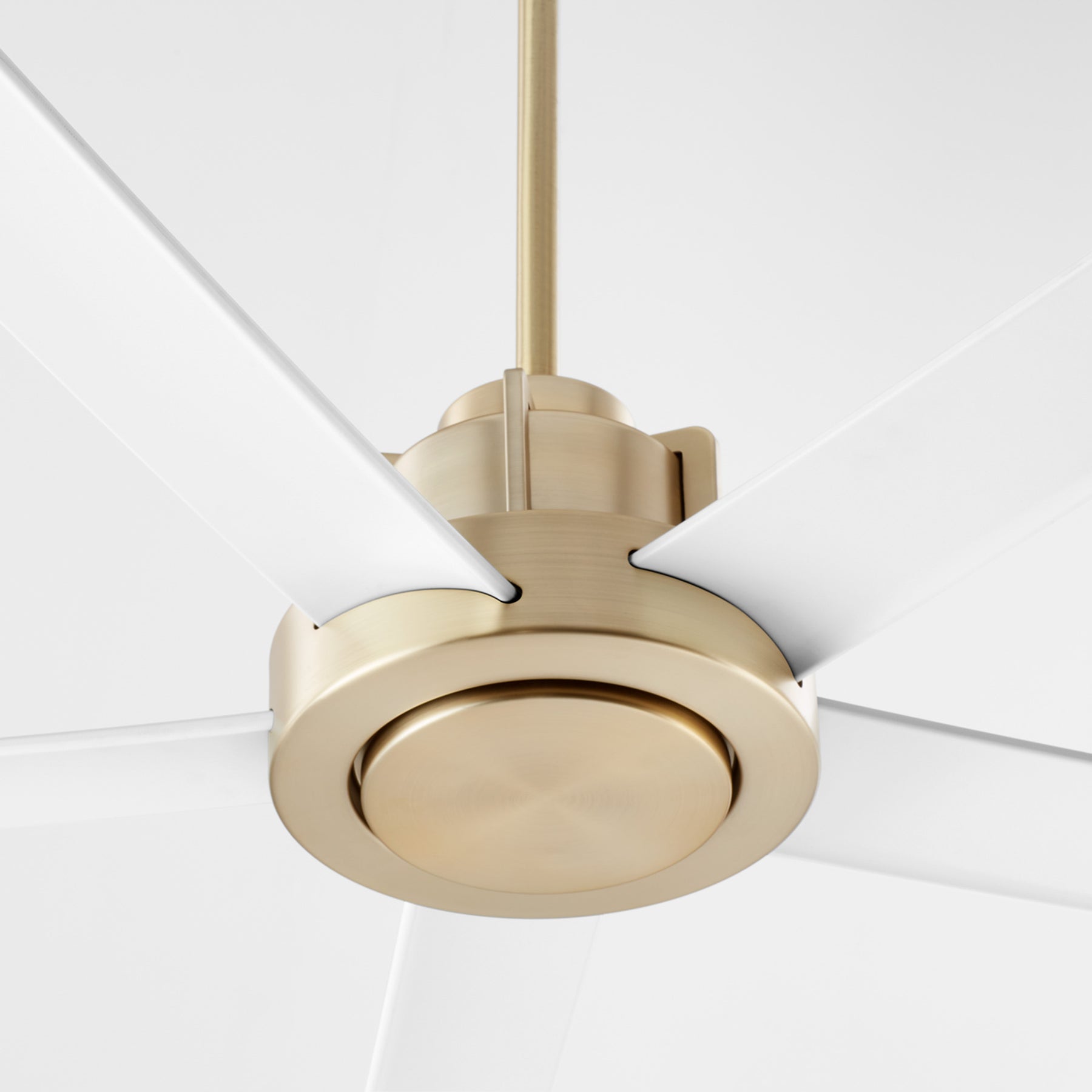

The Revel series of fans offers classic combinations of matte black, studio white, and aged brass. Five slender but powerful 80" blades circulate an impressive level of comfort while simultaneously delivering an abundance of style. Upgrade with the optional 24-watt LED light kit made for the Revel family.
Material 1: Steel
Material 2: Copper
Material 3: Aluminum
Finish 1: Aged Brass
Finish 2: Studio White
Height (inch): 15.8
Diameter (inch): 80
Weight (lbs): 23
Motor Size: DC-30NS
Motor Poles: 9
Motor Housing Diameter (inch): 8.39
Motor Housing Height (inch): 2.48
Number of Blades: 5
Blade Finish A: Studio White
Blade Material: ABS
Blade Pitch:
Light Kit Included: No
Light Kit Adaptable: Yes
Color Temperature: 3000K
Initial Lumens: 2227
CRI: 90
Amps: .36/.23/.15/.09/.07/.04
Downrod Length: 6
Dowrod Diameter 1 (inch): 0.5
Dowrod Diameter 2 (inch): 0.5
Ceiling to Blade (inch): 12.25
Ceiling to Bottom (inch): 14.25
Sloped Ceiling Adaptable: Yes
Canopy Width (inch):
Canopy Height (inch): 2.25
Canopy Finish: Aged Brass
Lead Wire Length (inch): 80
Remote Adaptable: Yes
Smart by Bond Included: Yes
Switch Type: 6 speed wall control
Reverse Switch Type: Wall control
EnergyGuide Airflow Efficiency: 10578
Watts: 27/17/10/6/4/3
RPM: 96/83/70/57/45/33
CFM/Watts Highspeed: 320
Motor Size: DC-30NS
Motor Poles: 9
Motor Warranty: Limited Lifetime Motor Warranty
Shipping Via: Parcel
Carton Height (inch): 10
Carton Length (inch): 25.25
Carton Width (inch): 14.5
