- 167 in stock

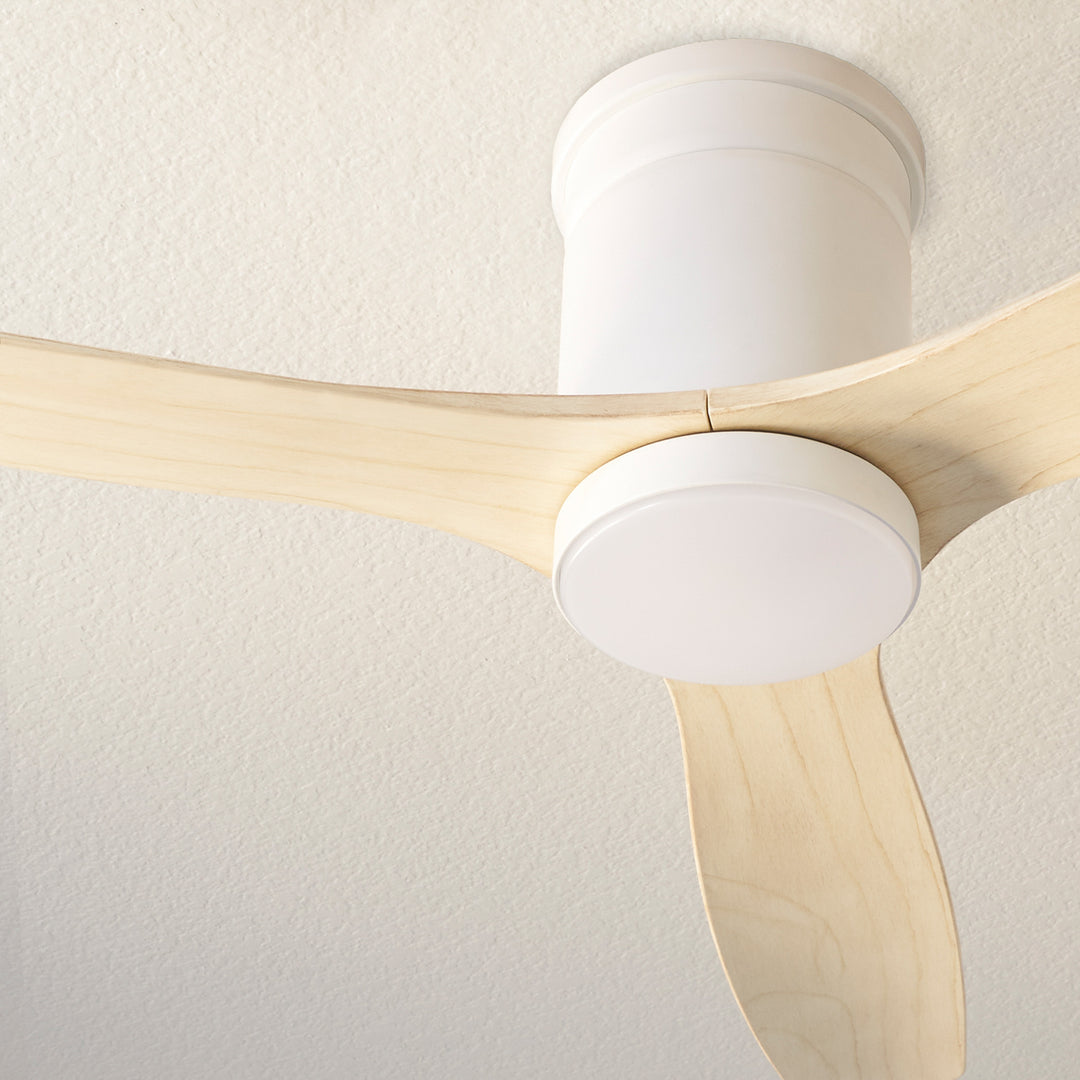

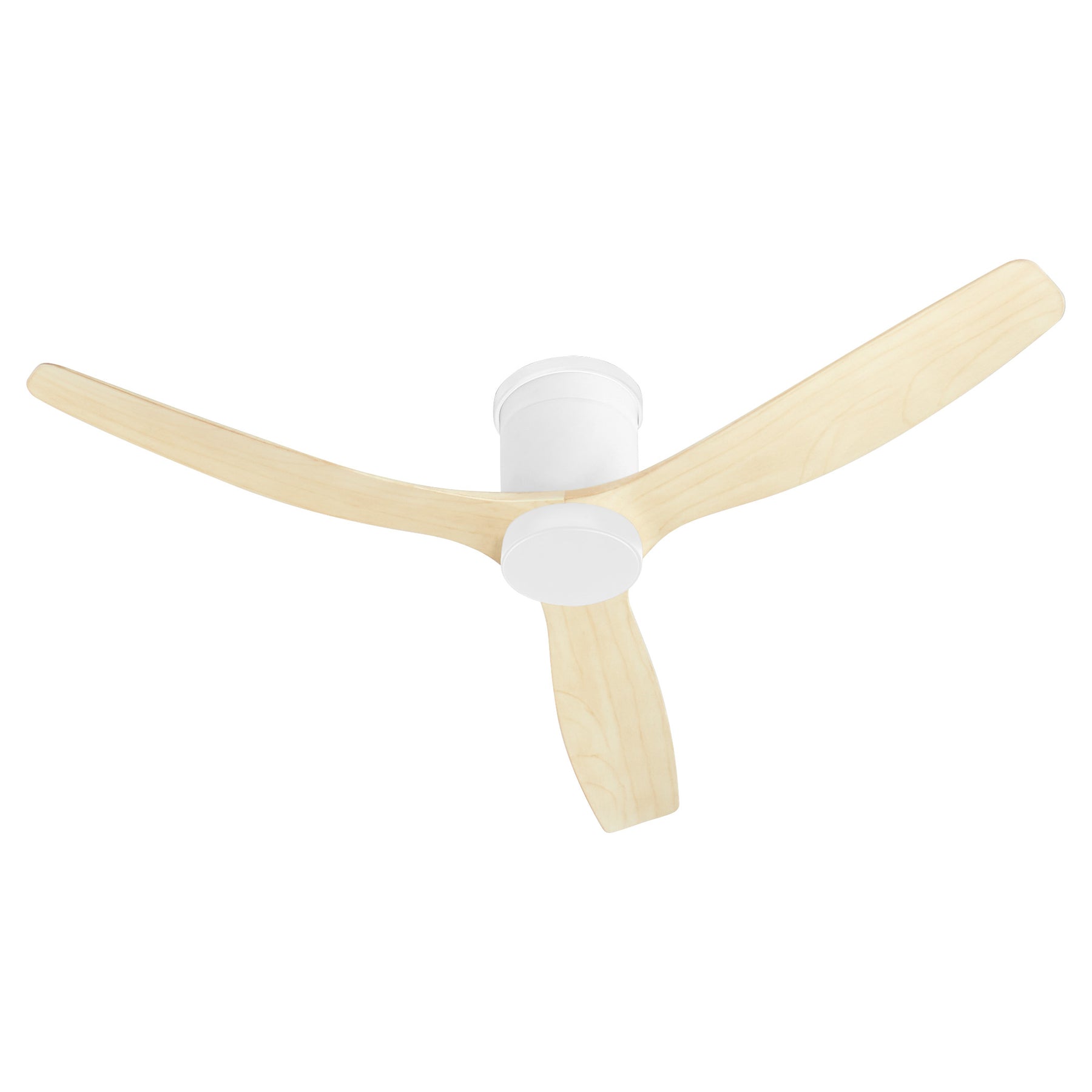

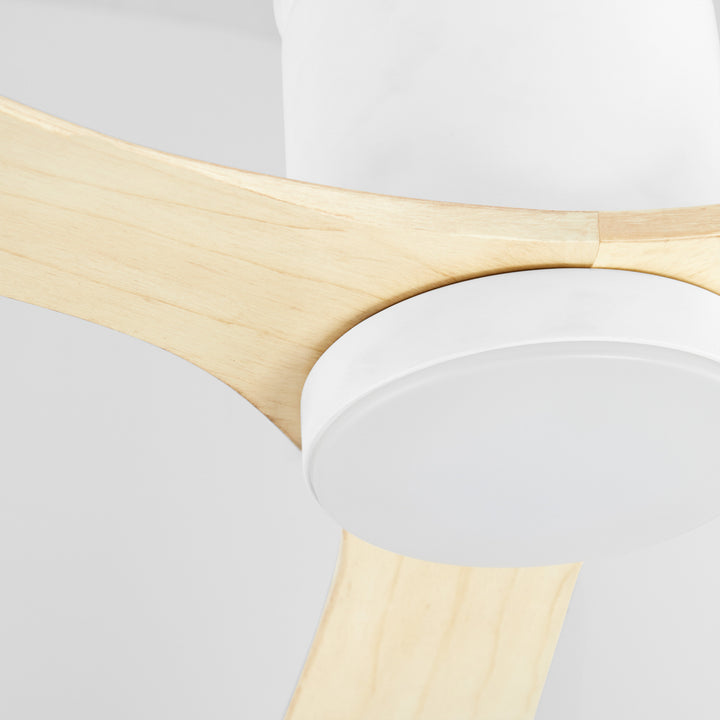

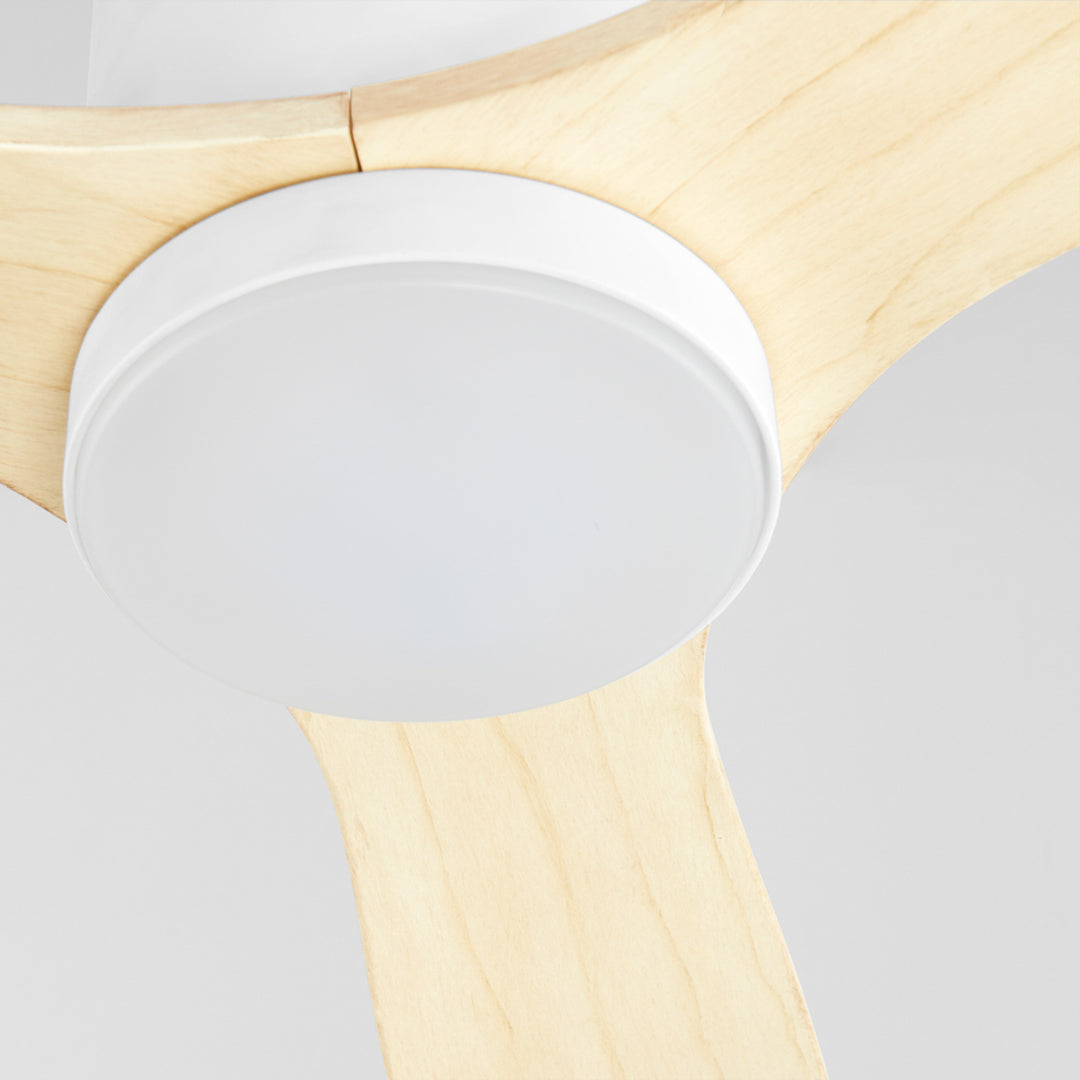

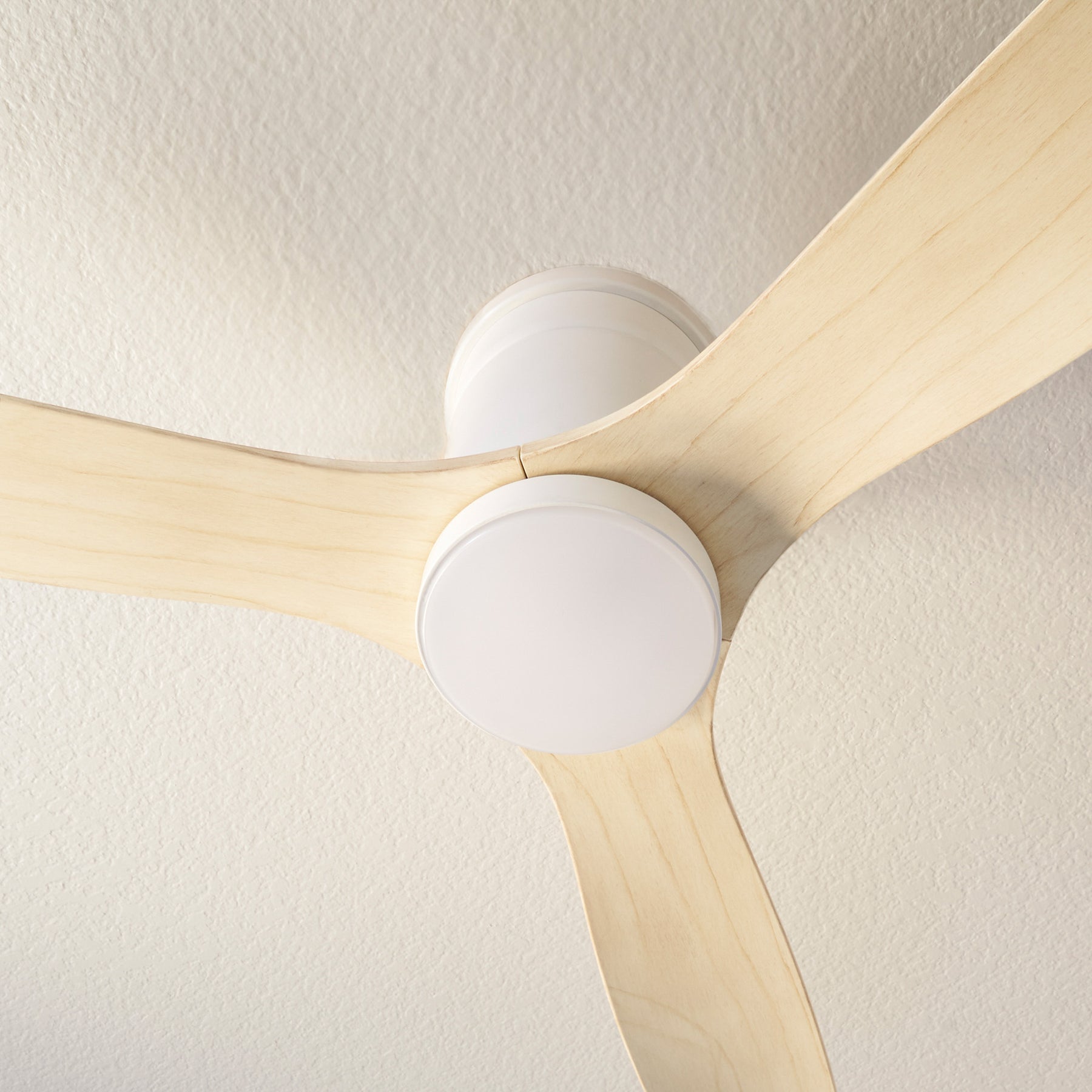

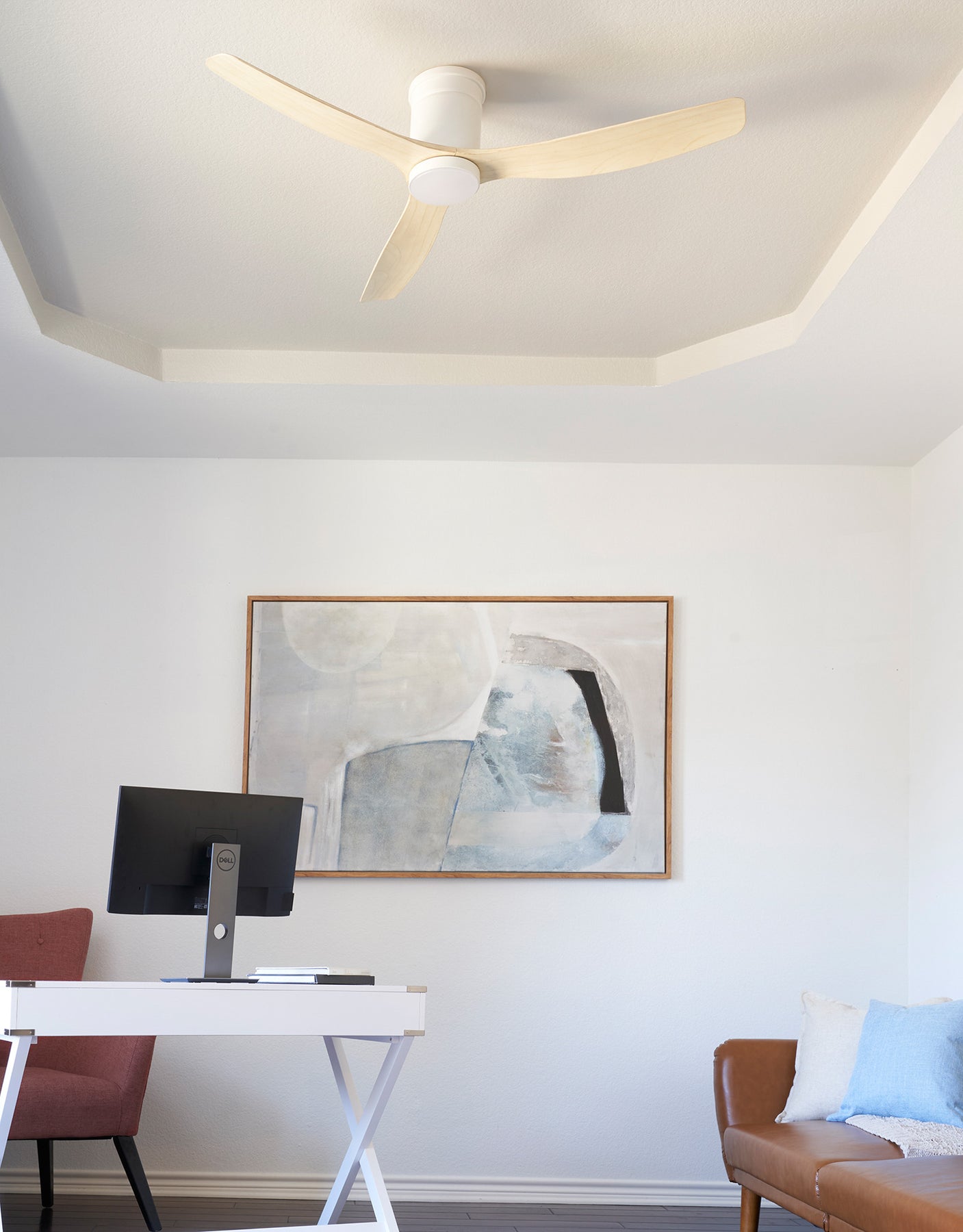

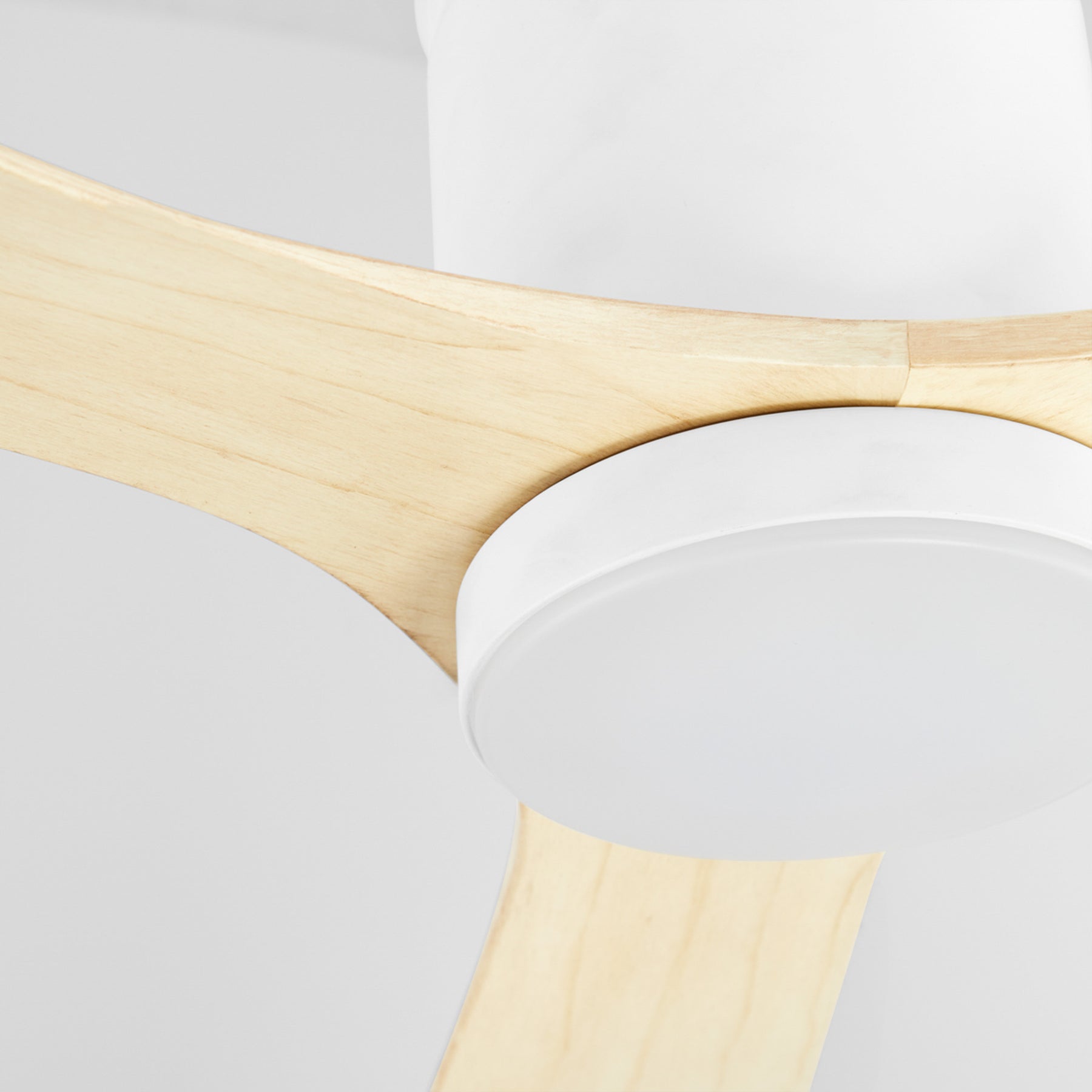

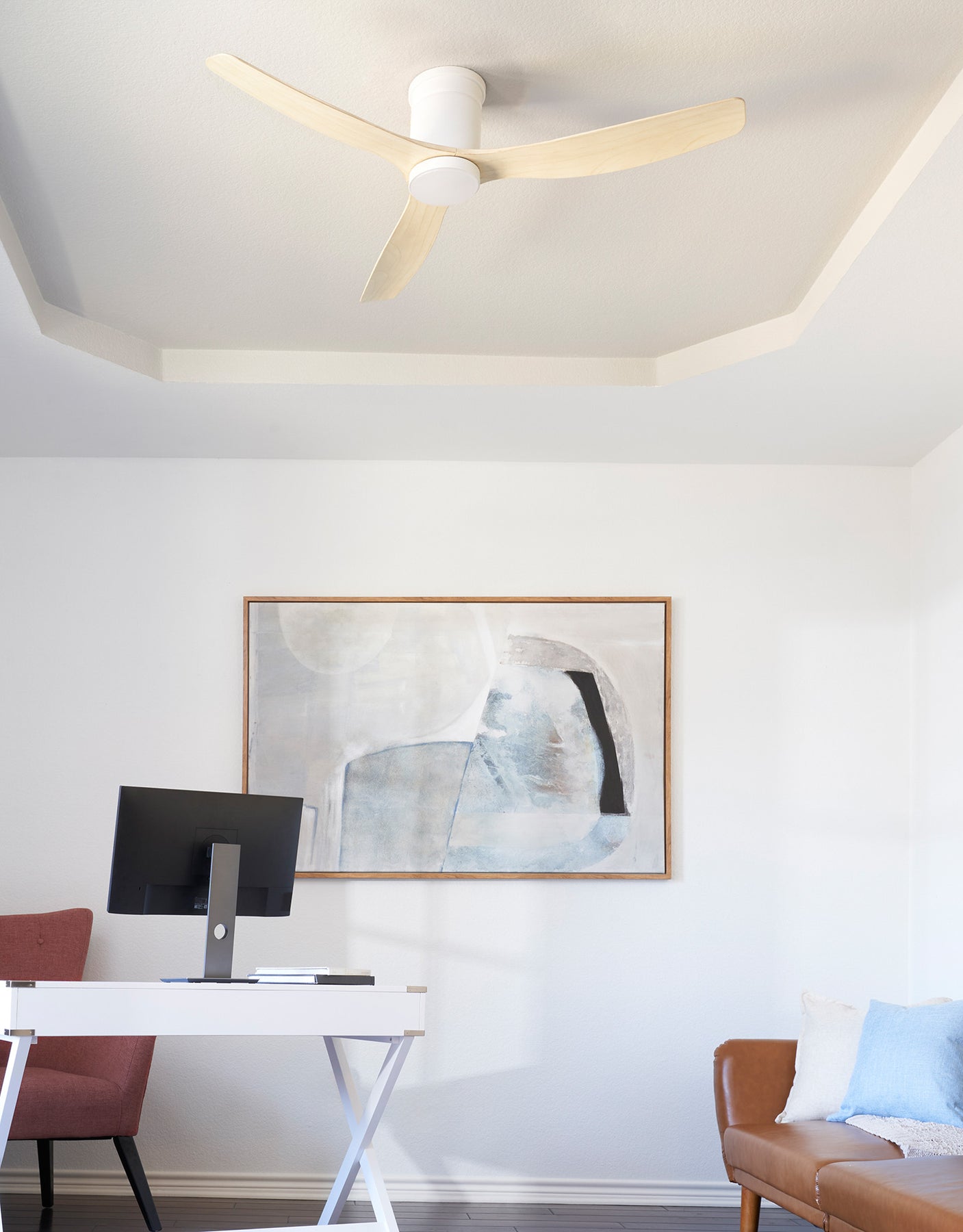

Smooth curves shape a seamless design in the Dayton series of damp-listed hugger fans. Enjoy a breezy 4,670 CFM from three 52" blades crafted from ABS thermoplastic. Enhance your experience with an LED light kit that aligns perfectly with the straight, cylinder motor housing. Options of natural-finished blades and studio white housing or walnut-finished blades and matte black housing provide juxtaposing light and dark choices that match most covered patio designs.
Material 1: Aluminum
Material 2: Zinc
Material 3: Iron
Finish: Studio White
Height (inch): 10.75
Diameter (inch): 52
Weight (lbs): 19
Motor Size: 120DCx12
Motor Poles: 8
Motor Housing Mesh Color: Studio White
Number of Blades: 3
Blade Finish A: Natural
Blade Material: ABS
Blade Pitch:
Light Kit Included: No
Light Kit Adaptable: No
Socket Base: LED Array
Color Temperature: 3000K
CCT 1: 2700K
CCT 2: 3000K
CCT 3: 3500K
CCT 4: 4000K
Initial Lumens: 1559
Amps: .28/.20/.15/.10/.07/.05
Dowrod Diameter 1 (inch): 0.5
Dowrod Diameter 2 (inch): 0.5
Ceiling to Blade (inch): 6.5
Ceiling to Bottom (inch): 9.125
Sloped Ceiling Adaptable: Yes
Sloped Ceiling Compatibility: 15
Extended Sloped Ceiling Compatibility: 23
Canopy Finish: Studio White
Lead Wire Length (inch): 16
Remote Adaptable: Yes
Switch Type: 6 speed wall control
Reverse Switch Type: Wall Control
Watts: 19/13/9/6/4/2
RPM: 200/173/151/123/100/77
Watts Highspeed: 25
Motor Size: 120DCx12
Motor Poles: 8
Motor Warranty: Limited Lifetime Motor Warranty
Shipping Via: Parcel
Carton Height (inch): 10.75
Carton Length (inch): 24.5
Carton Width (inch): 13
